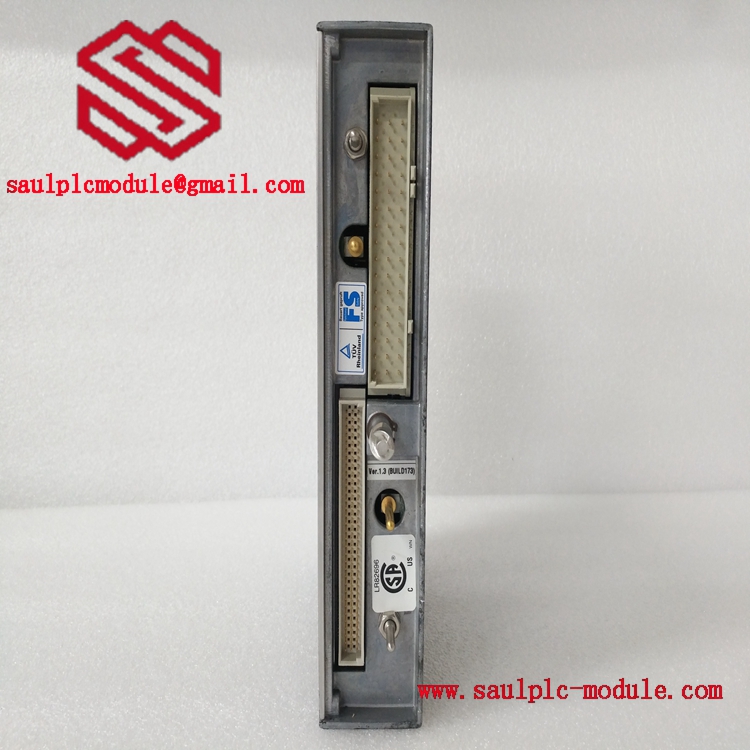

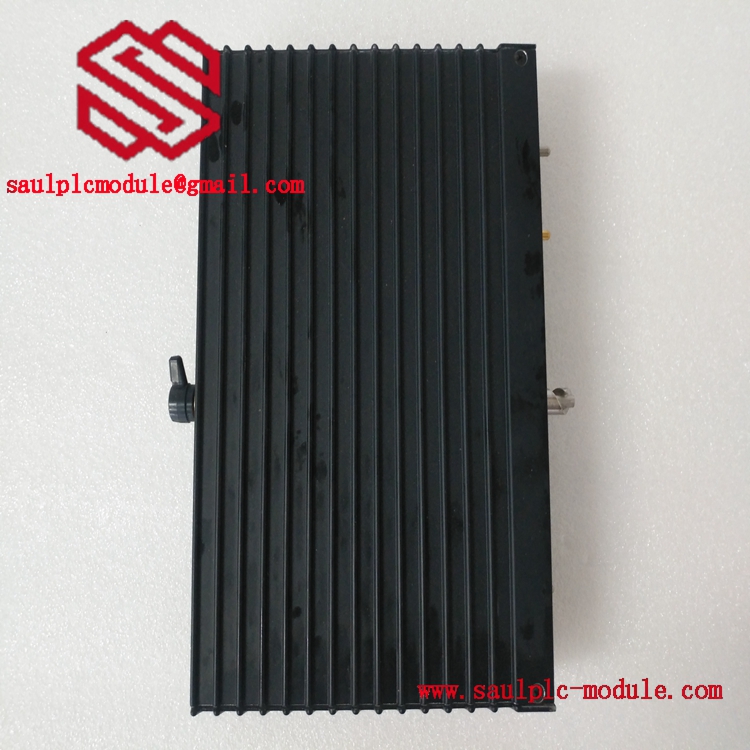

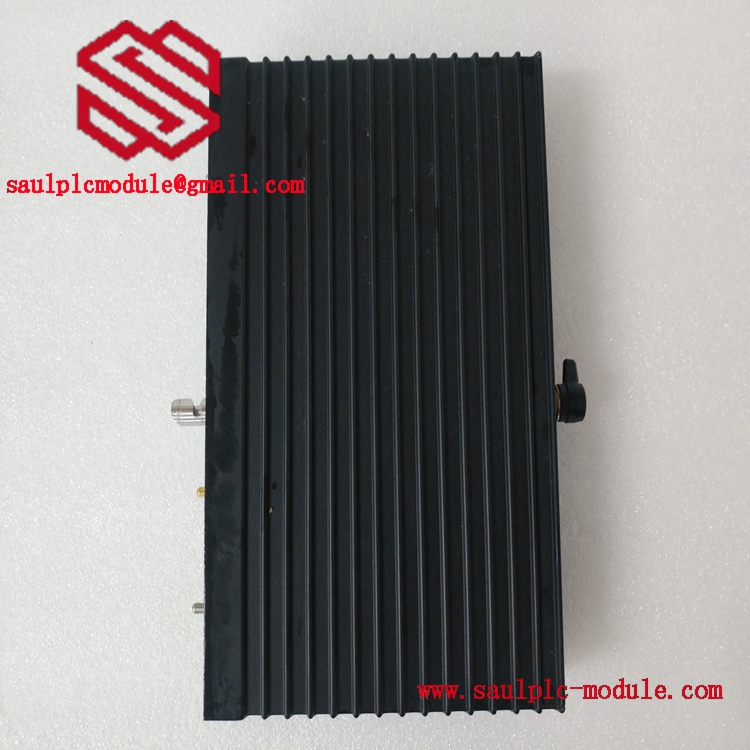

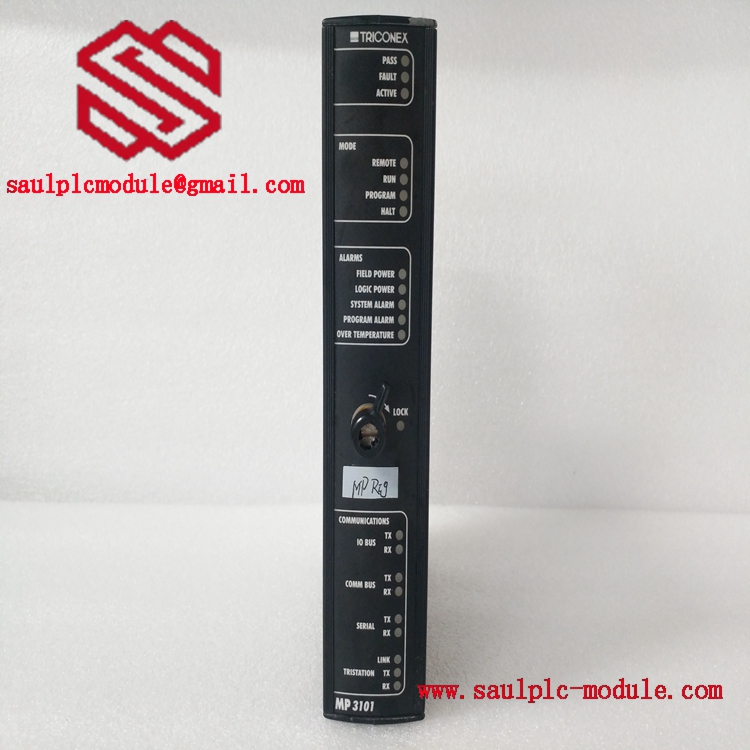

The TRICONEX MP3101S2​ is a Main Processor Module for the Triconex Tricon system, serving as the central control and processing unit within a Triple Modular Redundant (TMR) safety instrumented system (SIS). It is a later-generation component designed to deliver enhanced processing power, advanced diagnostics, and robust communication capabilities. As the core of the TMR architecture, its primary function is to execute safety application logic, manage all I/O communications, perform continuous system diagnostics, and ensure fault-tolerant operation to achieve high Safety Integrity Level (SIL) performance for critical process safety applications.

Enhanced TMR Processing Power:

The TRICONEX MP3101S2​ is built on an advanced processor platform, offering significantly increased computational speed and memory capacity compared to earlier main processors. This enhanced power allows it to execute more complex safety logic, handle larger I/O configurations, and support advanced application functions with faster, more deterministic scan times, which is crucial for modern, high-speed process safety requirements.

Advanced System-Wide Diagnostics and Health Monitoring:

This module incorporates sophisticated diagnostic routines that extend beyond self-checking to monitor the entire Tricon chassis ecosystem. It performs in-depth health checks on all connected TMR I/O modules, communication networks, and power supplies. Faults are precisely identified, logged, and reported, enabling predictive maintenance and allowing the system to maintain or transition to a safe state in the event of any detected fault that could compromise the safety function.

Robust and Secure Communication Management:

The MP3101S2​ features enhanced communication interfaces to manage both the internal high-speed TMR bus (TriBus) and external plant networks. It efficiently handles data exchange with I/O modules and supports key industrial protocols for integration with Distributed Control Systems (DCS), HMIs, and asset management systems. Security features are integrated to protect the safety logic and configuration from unauthorized access or cyber threats, aligning with modern industrial security standards.

High Availability and Hot Replacement:

Engineered for maximum uptime, the module supports full controller-level redundancy when configured in a redundant pair. It is designed for true hot-swap replacement. In the event of a failure, the module can be physically replaced while the companion processor (in a redundant system) or the remaining two TMR channels continue to execute the safety application without interruption, ensuring continuous safety protection during maintenance.

The TRICONEX MP3101S2​ is deployed as the central controller in the most critical safety instrumented systems across hazardous industries. It is the preferred choice for large-scale Emergency Shutdown (ESD) systems in refineries and offshore platforms, comprehensive Fire & Gas (F&G) systems, critical Burner Management Systems (BMS) for power generation, and high-speed Turbomachinery Control (TMC). Its performance also makes it suitable for complex safety applications in chemical, pharmaceutical, and other process industries where large I/O counts and advanced logic are required.

Another main processor module for the Tricon system. The MP3101S2​ and 4351B​ are both high-performance main processors, often belonging to different hardware revisions or specific model lines (e.g., MP series vs. 4000 series). They provide similar core functionality for their compatible system generations.

A High-Density TMR Digital Output Module. This is a key subordinate module that receives voted output commands from the TRICONEX MP3101S2​ to actuate final elements like solenoid valves and pumps in the field.

A Redundant Power Supply Module. It provides the clean, fault-tolerant DC power required for the reliable operation of the TRICONEX MP3101S2​ and all other modules in the chassis. The main processor monitors the health status of this power supply.
