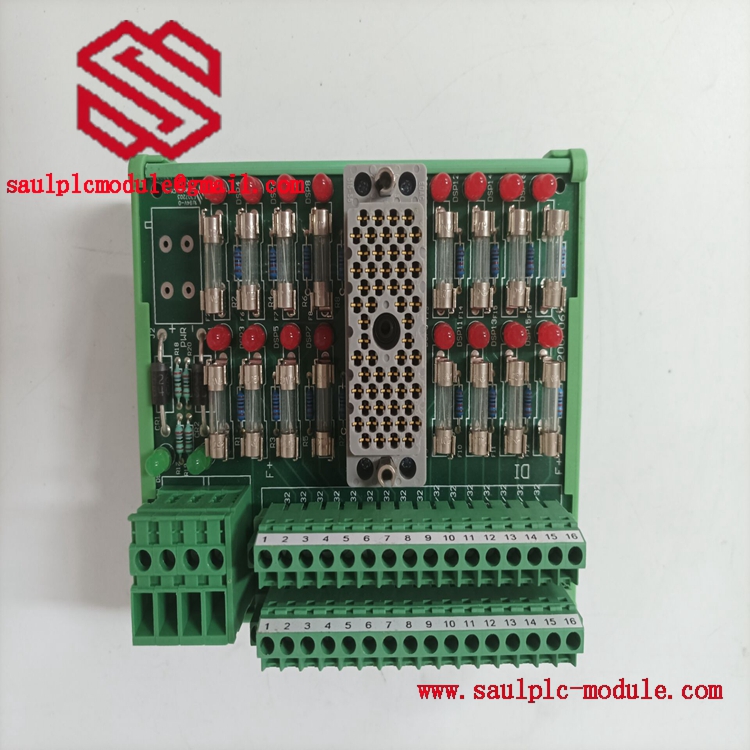

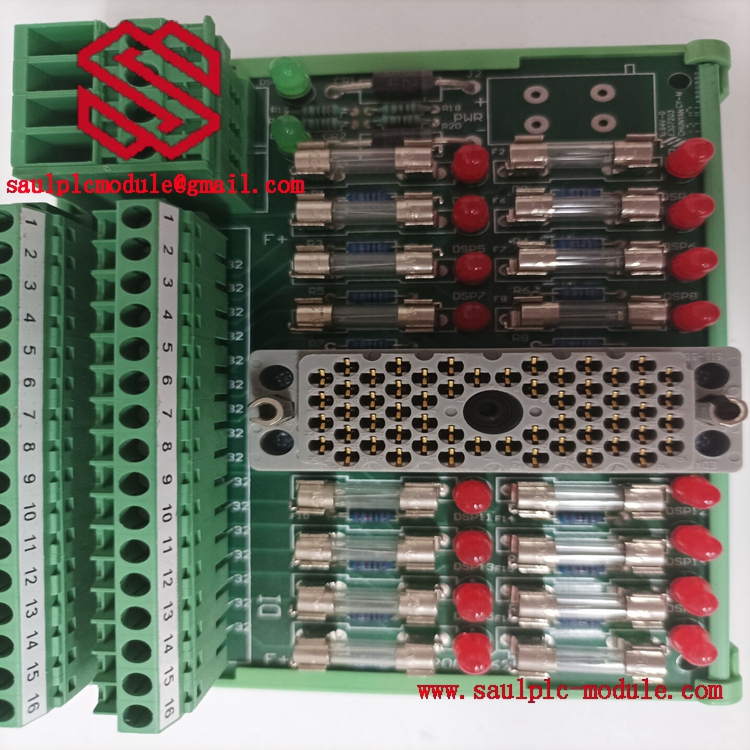

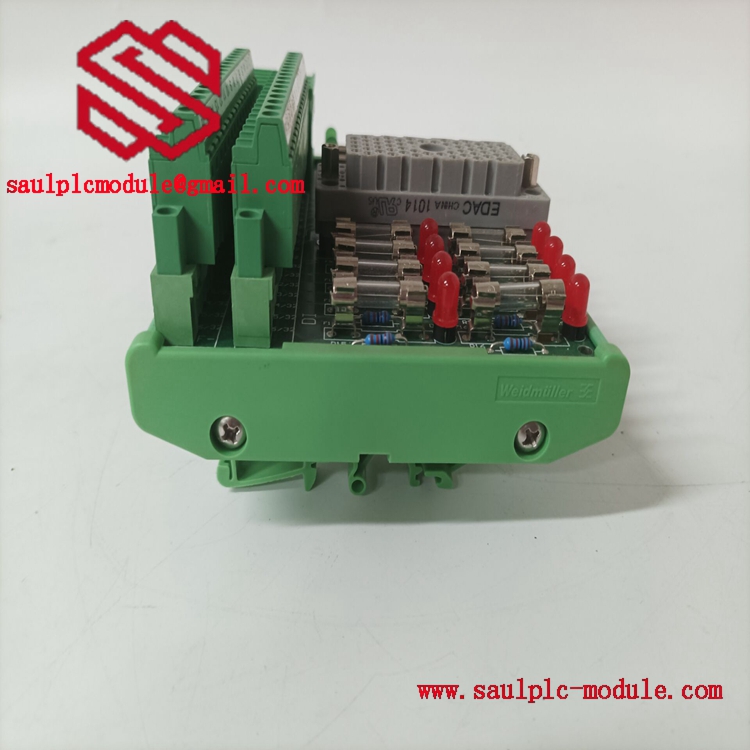

TRICONEX 9563-810 DI Terminal Board
Product Overview:
The TRICONEX 9563-810 is a dedicated Digital Input (DI) Terminal Board designed for use with specific Tricon system digital input modules, such as the 3700A series. It serves as the critical physical interface between the field wiring and the TMR (Triple Modular Redundant) safety system’s input electronics. Its primary function is to provide a robust, organized, and safe termination point for field devices (like pushbuttons, limit switches, and transmitters with discrete outputs) and to deliver the conditioned, isolated signals to the associated TMR input module. It plays a vital role in signal integrity, diagnostics, and ease of maintenance within a safety instrumented system.
Key Features and Advantages:
Secure and Organized Field Termination:
The TRICONEX 9563-810 provides a rugged, screw-type terminal block interface for connecting field device wires. It offers clearly labeled connection points for each channel, including connections for the input signal, common return, and diagnostic features like fused test voltage. This organized layout simplifies initial wiring, reduces errors during installation, and facilitates easier troubleshooting and loop checks during the system’s lifecycle.
Integrated Signal Conditioning and Isolation:
While the primary signal conversion happens in the associated TMR input module, the terminal board is designed with integral components such as fuses, resistors, and opto-couplers for voltage dropping and basic conditioning. It provides critical galvanic isolation between the field wiring side and the internal TMR system electronics. This isolation protects the sensitive safety system from high-voltage transients, ground loops, and other electrical noise present in industrial field environments, which is essential for reliable operation.
Facilitates Advanced Diagnostics:
The TRICONEX 9563-810 is engineered to support the advanced diagnostic capabilities of the TMR input modules. It incorporates provisions for applying a diagnostic test voltage (often 24V DC) to the field loop. This allows the system to perform continuous online diagnostics, such as detecting open wire (broken connection) conditions or short circuits in the field wiring, providing early warning of potential failures before they compromise the safety function.
Designed for System Integration and Maintenance:
This terminal board is mechanically keyed and designed to plug directly into a corresponding slot on the Tricon I/O rack, ensuring a secure and correct connection to the parent 3704E or similar input module. Its design supports online module replacement. Maintenance personnel can disconnect field wiring at the terminal board, replace the associated electronic module, and reconnect without disturbing the field wiring, thereby reducing system downtime and maintenance errors.
Technical Specifications:
|
Feature
|
Specification
|
|---|---|
|
Product Model
|
TRICONEX 9563-810
|
|
Board Type
|
Digital Input (DI) Terminal Board
|
|
Compatible Module
|
Designed for use with TRICONEX 3704E and similar TMR DI modules
|
|
Input Type
|
Compatible with dry contact (volt-free) or solid-state DC field signals
|
|
Termination Type
|
Screw terminal block
|
|
Primary Function
|
Field wiring termination, signal conditioning, isolation, and diagnostic support
|
|
Key Diagnostic Support
|
Fused test voltage supply for field wire break detection
|
Application Areas:
The TRICONEX 9563-810 is used wherever discrete field signals need to be reliably brought into a Tricon safety system. It is ubiquitous in Safety Instrumented Systems (SIS) across high-hazard industries. Typical applications include connecting emergency stop buttons, pressure switches, level switches, flame detectors, gas detectors, valve position limit switches, and motor run status contacts in Emergency Shutdown (ESD), Fire & Gas (F&G), and Burner Management Systems (BMS) within oil & gas facilities, chemical plants, and power generation stations.
Related Products:
TRICONEX 3704E:
The High-Density TMR Digital Input Module. The TRICONEX 9563-810 terminal board is the direct mate for this electronic module. The 3704E contains the triple-redundant input circuits and intelligence, while the 9563-810 provides the physical field interface and conditioning.
TRICONEX 9563-610:
A typical Digital Output (DO) Terminal Board. This serves the complementary output function, providing the termination point for wiring to field actuators like solenoid valves and alarm horns, which are driven by a TMR output module like the 3805E.
TRICONEX 4351B:
The Main Processor Module. The digital signals conditioned and passed by the TRICONEX 9563-810 and its associated 3704E module are transmitted to the TRICONEX 4351B. The main processor reads these triplicated signals, performs a mid-value vote, and uses the result in the safety logic application.
