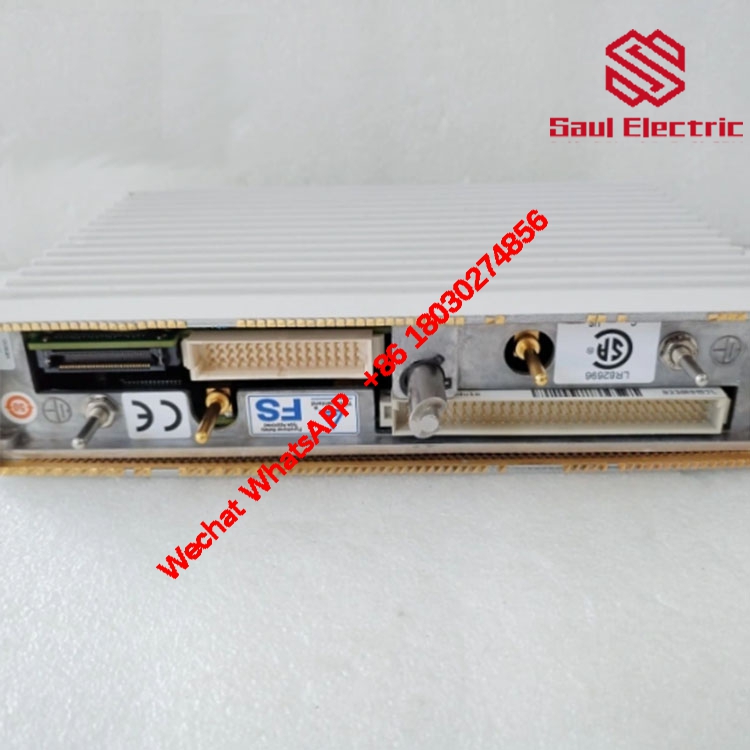

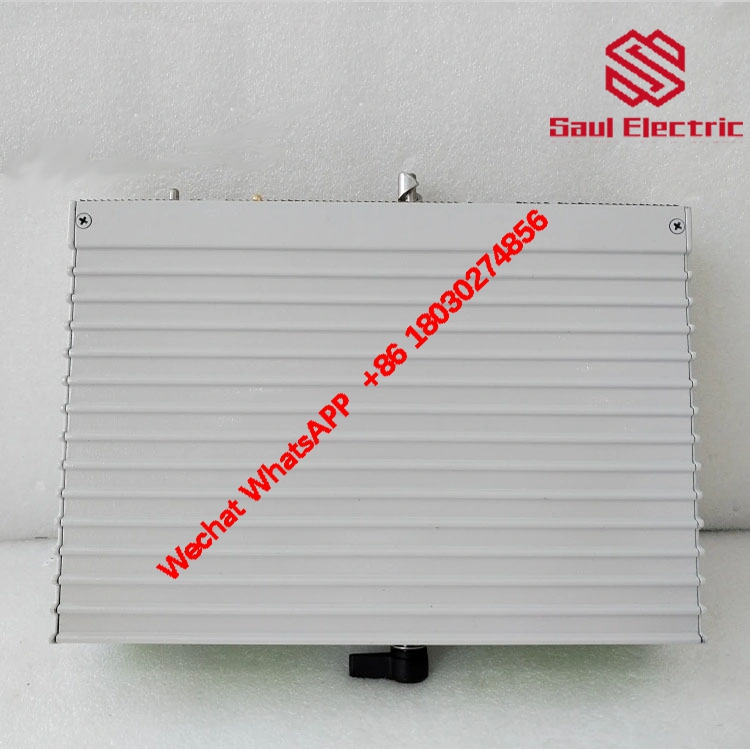

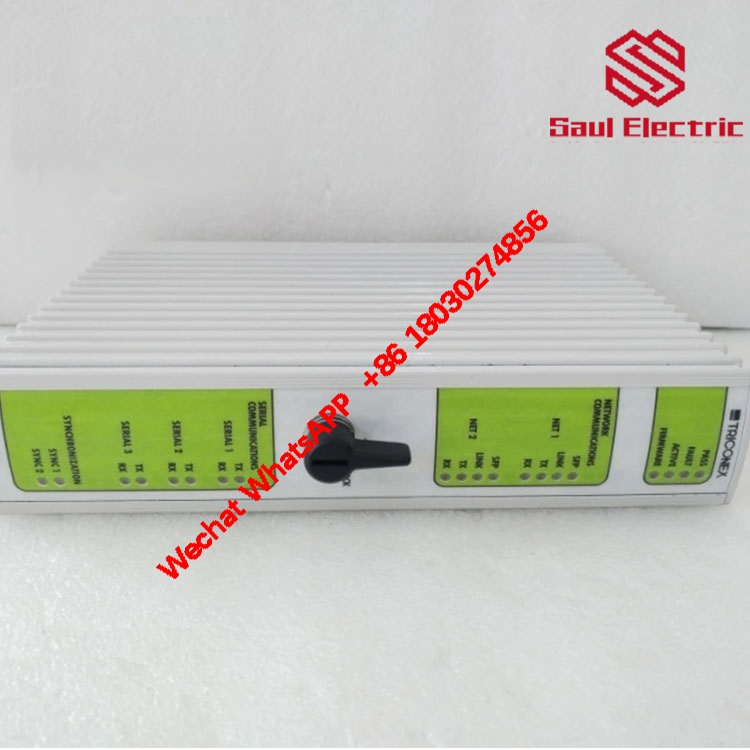

The TRICONEX 3211S2 Digital Input Module
Product Overview:
The TRICONEX 3211S2 is a high-speed, fully-isolated Digital Input Module specifically designed for the Tricon safety instrumented system (SIS). It is engineered to read high-frequency discrete signals from field devices where rapid state changes must be reliably captured. This module excels in applications requiring the detection of fast pulses or the monitoring of rotating equipment speed via proximity sensors or encoders, serving as a critical input for safety functions like overspeed protection, vibration monitoring, and high-speed sequencing.
Key Features and Advantages:
High-Speed Signal Acquisition:
The TRICONEX 3211S2 is optimized for speed, capable of accurately detecting and processing digital input signals with very short pulse durations or high frequencies. This makes it suitable for direct connection to devices like proximity switches, photoelectric sensors, and encoder outputs that generate signals beyond the capability of standard digital input modules.
Triple Modular Redundant (TMR) Architecture with Isolation:
Each input channel is implemented with three independent, isolated input circuits following the TMR design principle. This ensures that a single fault in any one channel will not cause a loss of the input signal or a spurious trip. The high degree of channel-to-channel and field-to-system isolation protects the sensitive TMR electronics from electrical noise, transients, and ground loops commonly found in industrial environments with high-speed machinery.
Advanced Diagnostics and Configurability:
The module provides sophisticated diagnostics to monitor the health of the input circuits and field wiring. It can detect conditions such as open circuits, short circuits, and loss of field power. The input parameters, including filter time constants and debounce settings, are configurable via software. This allows engineers to tune the module’s response to reject electrical noise while maintaining the necessary speed for accurate signal capture, ensuring reliable operation in electrically noisy environments.
Hot Replacement Capability:
Designed for maximum system availability, the TRICONEX 3211S2 supports online, hot-replacement maintenance. If a module fault is diagnosed, it can be safely removed and replaced while the Tricon system remains operational. The TMR architecture ensures that the two remaining healthy channels for each input continue to provide valid data, allowing the safety function to remain active without interruption during the maintenance procedure.
Technical Specifications:
|
Feature
|
Specification
|
|---|---|
|
Product Model
|
TRICONEX 3211S2
|
|
Module Type
|
High-Speed, Isolated Digital Input Module (TMR)
|
|
Input Signal Type
|
High-speed DC (compatible with proximity sensors, encoders)
|
|
Input Voltage Range
|
Typically 10-30V DC (configurable)
|
|
Maximum Input Frequency
|
[Example: Up to 10 kHz – Note: Exact spec must be verified]
|
|
Number of Channels
|
8 channels (triplicated)
|
|
Isolation
|
High-level channel-to-channel and field-to-system isolation
|
|
Key Diagnostics
|
Open circuit, short circuit, signal loss, module fault
|
|
Hot Replacement
|
Supported
|
Application Areas:
The TRICONEX 3211S2 is deployed in safety-critical applications where the reliable detection of fast-changing digital signals is paramount. Its primary use is in Turbomachinery Protection Systems (e.g., for gas or steam turbines) to monitor speed via magnetic pickups or proximity sensors for overspeed trip functions. It is also used for high-speed event sequencing, vibration monitoring where signals are conditioned into pulse trains, and in safety systems requiring precise timing or frequency monitoring from rotary equipment.
Related Products:
TRICONEX 3503E/3504E:
Standard-speed Digital Input Modules. These modules are used for standard on/off signals (e.g., pressure switches, pushbuttons), whereas the TRICONEX 3211S2 is specifically designed for high-frequency pulse counting and fast state detection.
TRICONEX 3511:
Frequency Input Module. While the TRICONEX 3211S2 reads discrete high-speed on/off pulses, the 3511 is specialized for accurately measuring the frequencyof an incoming signal, converting it into a precise numerical value (e.g., RPM) for the safety logic.
TRICONEX 4351B:
The Main Processor Module. The high-speed digital status signals from the TRICONEX 3211S2 are transmitted to the TRICONEX 4351B. The main processors vote on these triplicated inputs and utilize the validated data in high-speed safety logic, such as initiating an emergency shutdown if an overspeed condition is detected.
| TRICONEX | 4351B | Communication Module |
| TRICONEX | 3721 | Analog Input Module |
| TRICONEX | 3625 | Digital Output Module |
| TRICONEX | 3625A | Digital Output Module |
| TRICONEX | 3604E | Optically isolated, non-common. Voltage: 24VDC. Number of outputs: 16. |
| TRICONEX | 3504E | High-density—common, DC-coupled. Voltage: 24/48VDC. Number of input points: 64 |
| TRICONEX | 3503E | Digital input module. 8 points per group, shared, with self-test function. Voltage: 24VAC/VDC. Number of input points: 32 |
| TRICONEX | 3700A | Analog Input Module |
| TRICONEX | 3511 | Frequency Module |
| TRICONEX | 3481 | Trident Analog Output Module |
| TRICONEX | 3008 | Executes control program and votes on inputs and outputs |
| TRICONEX | 9662-610 | Digital Output Module |
| TRICONEX | 3009 | CPU Main Processor Module |
| TRICONEX | 3009X | CPU Main Processor Module |
| TRICONEX | 3211S2 | Safety Communication Module |
