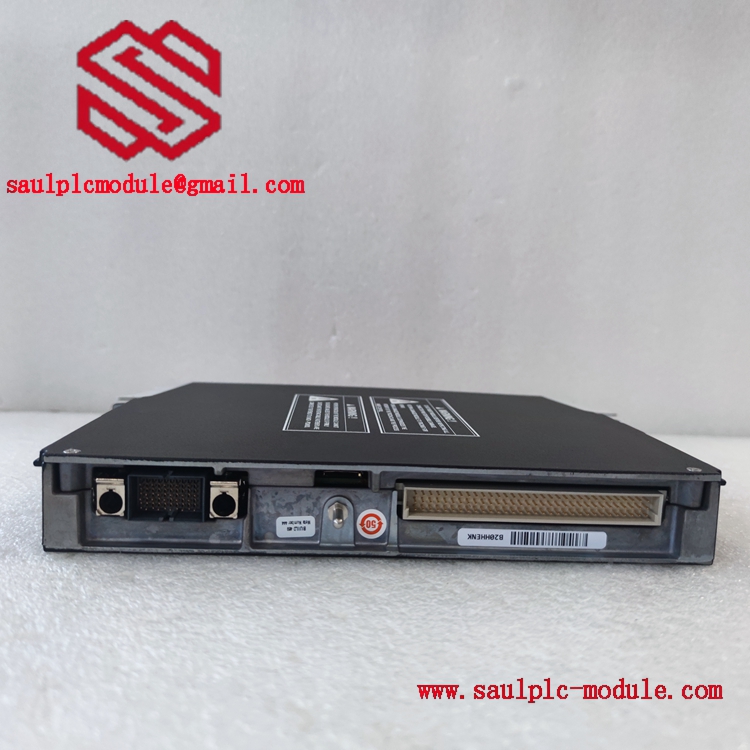

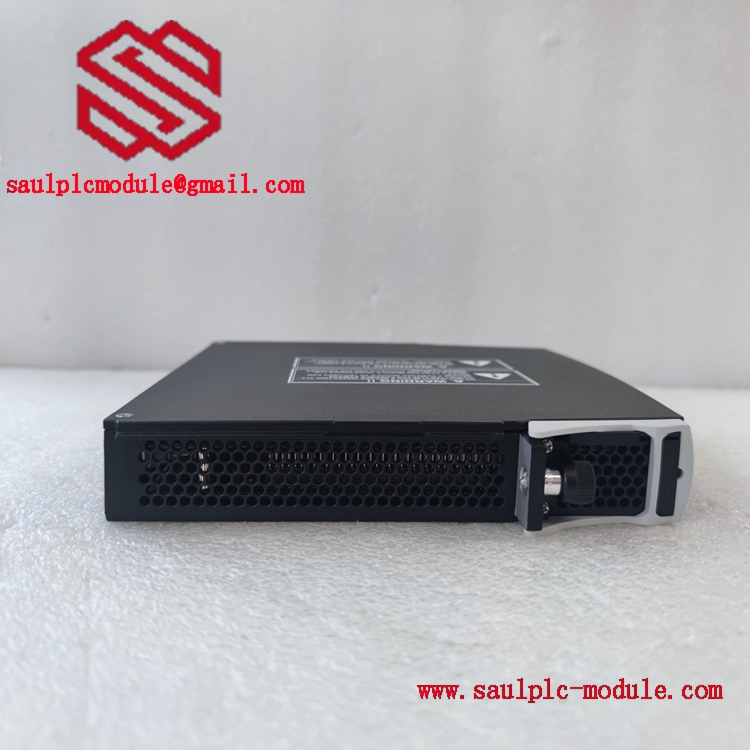

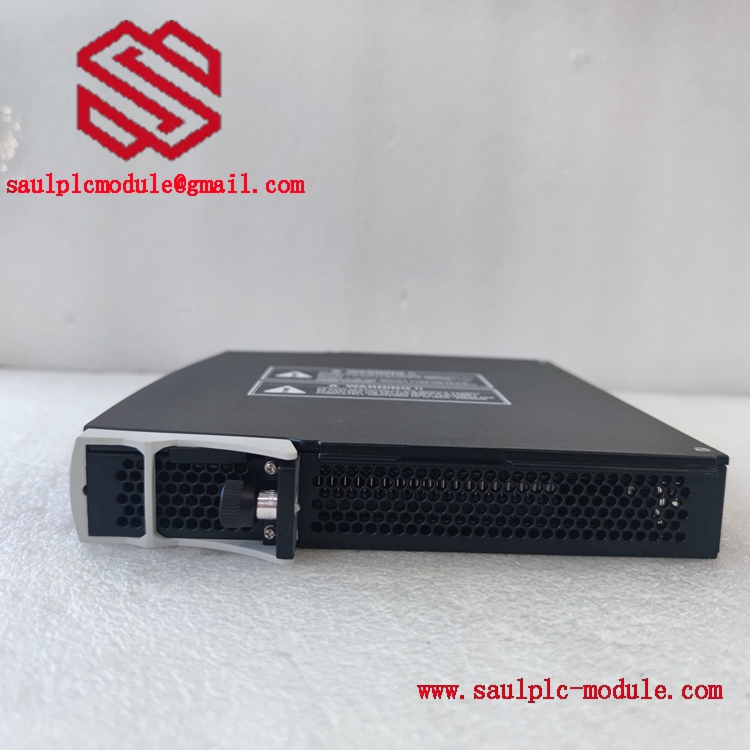

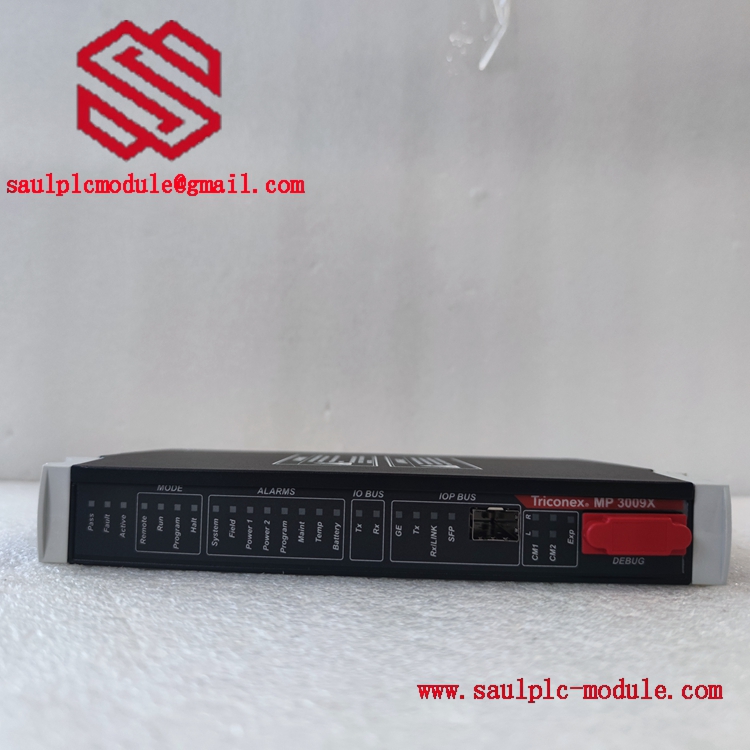

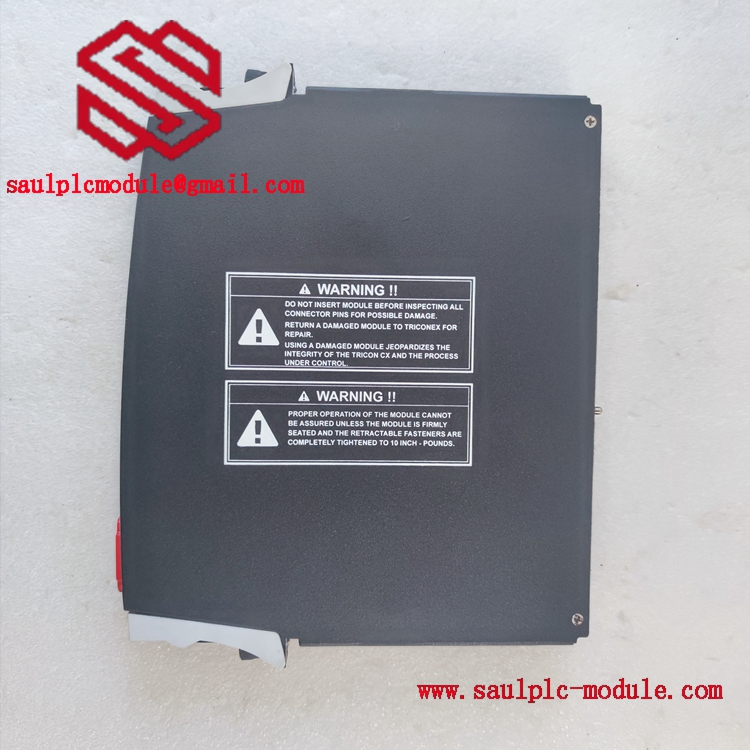

The TRICONEX 3009X is a key component of the TRICONEX safety instrument system (SIS), developed by Honeywell7. It is a high – reliability safety control module that adopts triple modular redundancy (TMR) technology. As the core of the SIS, it is mainly responsible for executing safety control logic, processing input/output signals, and ensuring the stable operation of the system3.

The module is designed to meet the high – safety requirements of industrial automation. It can be used in various safety – critical applications, such as emergency shutdown systems, fire and gas detection systems, and turbine control systems2. By continuously monitoring and processing field data, it can quickly respond to potential safety hazards and ensure the safety of personnel and equipment.

High – reliability Redundancy: The TRICONEX 3009X adopts TMR technology, with three completely independent processor modules in each TMR loop. All modules work in parallel and monitor each other, so that any single – module failure will not affect the overall performance of the system. This redundant design ensures the stable operation of the system under the condition of single – point failure, greatly improving the reliability of the system.
Powerful Processing Capacity: Equipped with a high – performance ARM Cortex – M4 or PowerPC processor, it has fast processing speed and efficient data – processing ability. It can support complex control logic and large – scale system operations, and quickly process a large number of data from field devices, providing a strong guarantee for the real – time performance of the system.
Flexible and Scalable: The module supports a variety of I/O modules and communication protocols, such as Modbus TCP/IP, EtherCAT, etc. This makes it easy to integrate into existing systems, and can be flexibly configured according to different application requirements. At the same time, the modular design is also convenient for system expansion and maintenance, and supports hot – swap, which is convenient for on – site operation.
High – safety Performance: Meeting the safety integrity level requirements of SIL 3, and supporting safety – related functions such as safety interlocks, sequence control, and emergency shutdown. It can effectively prevent the occurrence of dangerous events, and provide reliable safety protection for industrial production processes5.

Petroleum and Natural Gas Industry: Widely used in oil fields, refineries, and natural gas processing plants, it is responsible for the safety control of production processes, such as monitoring the operation of oil – gas production equipment, and realizing emergency shutdown of equipment in case of danger to ensure the safety of the production process.
Chemical Industry: In chemical production, it can monitor and control the production process of dangerous chemicals, ensure the stability of the production process, and prevent the occurrence of chemical accidents, so as to protect the safety of personnel and the environment.
Power Industry: Applied in power plants and substations, it is used for the safety control of power equipment, such as the safety protection of generators and transformers, and the monitoring and control of circuit breaker operation, which helps to improve the reliability of the power system.
Other Industries: Also applicable to industries with high – safety requirements, such as metallurgy, nuclear industry, etc. In the metallurgical industry, it can ensure the safety of the metallurgical process and prevent environmental pollution; in the nuclear industry, it is used for the safety control of nuclear power plants to ensure the safe operation of nuclear facilities1.

TRICONEX I/O Modules: Such as various digital I/O modules and analog I/O modules, which can be used in combination with TRICONEX 3009X. They are responsible for collecting field – level data or outputting control signals, and cooperate with the 3009X module to complete the data communication and control functions of the entire system.
TRICONEX Communication Modules: Support different communication protocols, and can further enhance the communication capabilities of the TRICONEX 3009X system, such as realizing longer – distance data transmission or more stable communication connections.
TRICONEX Power Modules: Provide a stable power supply for the TRICONEX 3009X module, ensuring the normal operation of the module under different power conditions, and have functions such as over – voltage protection and under – voltage protection.
TRICONEX Redundancy – related Modules: Used to further strengthen the redundancy of the system, such as redundant power supply modules and redundant communication link modules, which can cooperate with the built – in redundancy of the 3009X module to improve the overall reliability of the system.

Installation Preparation: Before installing the TRICONEX 3009X, ensure that the installation environment meets the temperature and humidity requirements, and keep the installation site clean and free from strong electromagnetic interference. Check whether the power supply voltage is 24V DC and is stable. According to the actual situation of the site, select a suitable installation location, and use the corresponding mounting bracket for installation to ensure firm installation. At the same time, check whether the communication cable and power cable are in good condition, and ensure that the connectors are clean and free of damage.
Maintenance Suggestions: Regularly check the operating status of the TRICONEX 3009X, and pay attention to whether the indicator lights are normal. Clean the module regularly to prevent dust from affecting heat dissipation and normal operation. Periodically check the communication connection and power supply, and ensure that the cable connection is firm. Use the self – diagnosis function of the module to monitor the system status, and timely deal with the detected faults. According to the requirements of the product manual, replace the vulnerable components regularly to ensure the long – term stable operation of the module.

Hong Kong Saul Electric Co., Ltd. has been a leading enterprise in the industrial control industry since 2007. We are proud to provide a 1 – year product warranty for the TRICONEX 3009X. As an import – export trading and distribution company, we have a large inventory of industrial control spare parts, including many hard – to – find and discontinued models. Our strong supply – channel advantages and sufficient stock can quickly meet customers’ urgent needs for spare parts. If any quality problems occur with the TRICONEX 3009X during the warranty period, our professional after – sales service team will provide timely technical support and solutions to ensure your satisfaction.
