Description

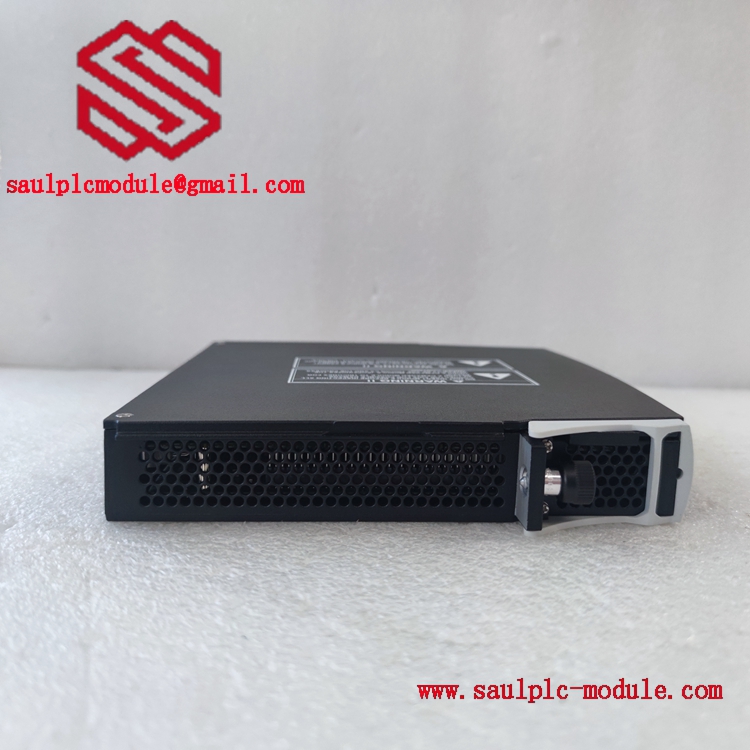

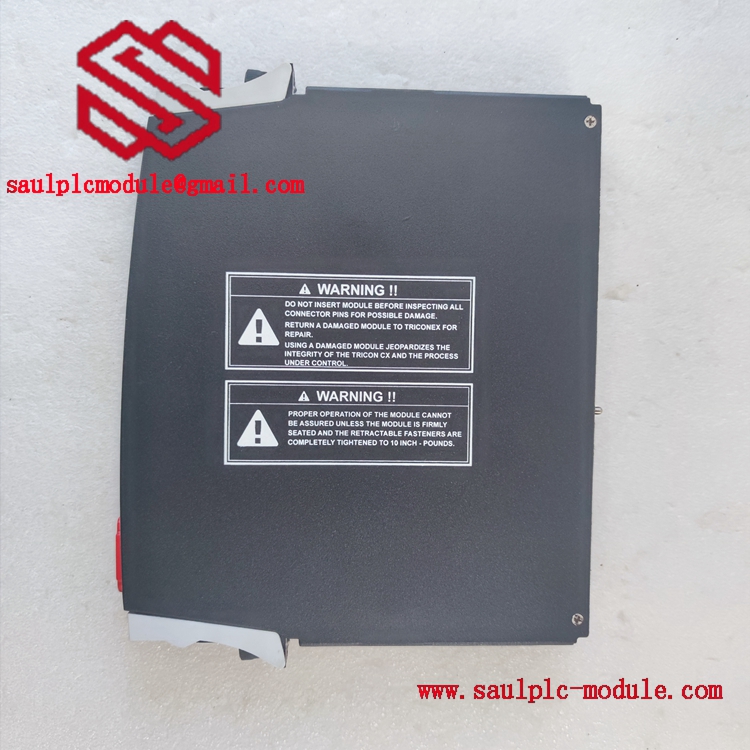

TRICONEX 3009X CPU Main Processor Module
Product Overview:
The TRICONEX 3009X is a CPU Main Processor Module, forming the central control unit for select legacy generations of the Tricon safety instrumented system (SIS). As the core of the Triple Modular Redundant (TMR) architecture, it is responsible for executing the safety application logic, performing comprehensive system diagnostics, and managing all internal and external communications. This module orchestrates the operation of the entire TMR system, ensuring that safety functions are performed with the highest level of reliability, fault tolerance, and deterministic performance in critical process safety applications.
Key Features and Advantages:
Triple Modular Redundant (TMR) Processing Core:
The TRICONEX 3009X embodies the core TMR principle. It contains three independent, synchronized microprocessor channels operating in parallel. Each channel executes the same user-configured safety logic program simultaneously. A dedicated hardware voter compares the outputs of the three channels on a cycle-by-cycle basis. If one channel deviates due to a fault, it is automatically masked out by the voter, and the system continues to operate correctly based on the agreement of the two healthy channels. This hardware fault tolerance is fundamental to achieving high Safety Integrity Levels (SIL).
Deterministic Safety Logic Execution:
The module is engineered for predictable, real-time performance. It executes the safety logic with a fixed, deterministic scan time. This guarantees that safety-critical decisions and output actions occur within a known and bounded timeframe, which is an absolute requirement for time-sensitive safety functions like emergency shutdowns. The system’s response time is calculable and reliable.
Comprehensive System Diagnostics and Fault Reporting:
The TRICONEX 3009X performs continuous, in-depth diagnostics on itself, the I/O modules, and the communication buses. It monitors processor health, memory integrity, power status, and I/O communication integrity. Any detected fault is immediately reported and logged. This allows for predictive maintenance and enables the system to enter a predefined safe state if a fault compromises its ability to perform the safety function correctly.
Legacy Communication and Integration:
This main processor module supports the communication protocols and networks relevant to its system generation. It typically manages the internal high-speed TMR bus (TriBus) for I/O communication and provides interfaces for connecting to external systems such as Distributed Control Systems (DCS), engineering workstations, and HMIs via supported legacy protocols (e.g., TriStation, Modbus). This enables integration into the broader plant control and monitoring network.
Technical Specifications:
|
Feature
|
Specification
|
|---|---|
|
Product Model
|
|
|
Module Type
|
CPU Main Processor Module (TMR)
|
|
System Compatibility
|
Legacy Tricon System (Specific chassis, e.g., Tricon v9)
|
|
Architecture
|
Triple Modular Redundant (TMR)
|
|
Safety Certification
|
Suitable for systems certified up to SIL 3 per IEC 61508/61511
|
|
Primary Function
|
Executes TMR safety logic, system diagnostics, communication management
|
Application Areas:
The TRICONEX 3009X was deployed as the central brain of Tricon safety systems in critical industries. Its primary historical applications were in Emergency Shutdown (ESD) systems for oil & gas production platforms and refineries, Fire & Gas (F&G) detection and mitigation systems, Burner Management Systems (BMS) for large boilers, and Turbomachinery Control (TMC) for critical compressor and turbine protection. Many systems using this processor remain in service today, maintaining safety in these demanding environments.
Related Products:
TRICONEX 4351B:
A later-generation Main Processor Module (for Tricon v9/v10/CX). The TRICONEX 4351B represents a more advanced and powerful evolution of the main processor, offering enhanced performance, memory, and communication capabilities compared to the legacy 3009X.
TRICONEX 3008:
A typical chassis model designed to house the TRICONEX 3009X main processor, power supplies, and I/O modules. It provides the physical backplane and mounting for the entire TMR system.
TRICONEX 3704E / 3805E:
Example I/O modules. The TRICONEX 3009X main processor communicates with and controls TMR input modules like the 3704E (Digital Input) and output modules like the 3805E (Digital Output), forming a complete safety loop. The processor reads voted input data from these modules, executes logic, and sends commands to them.
