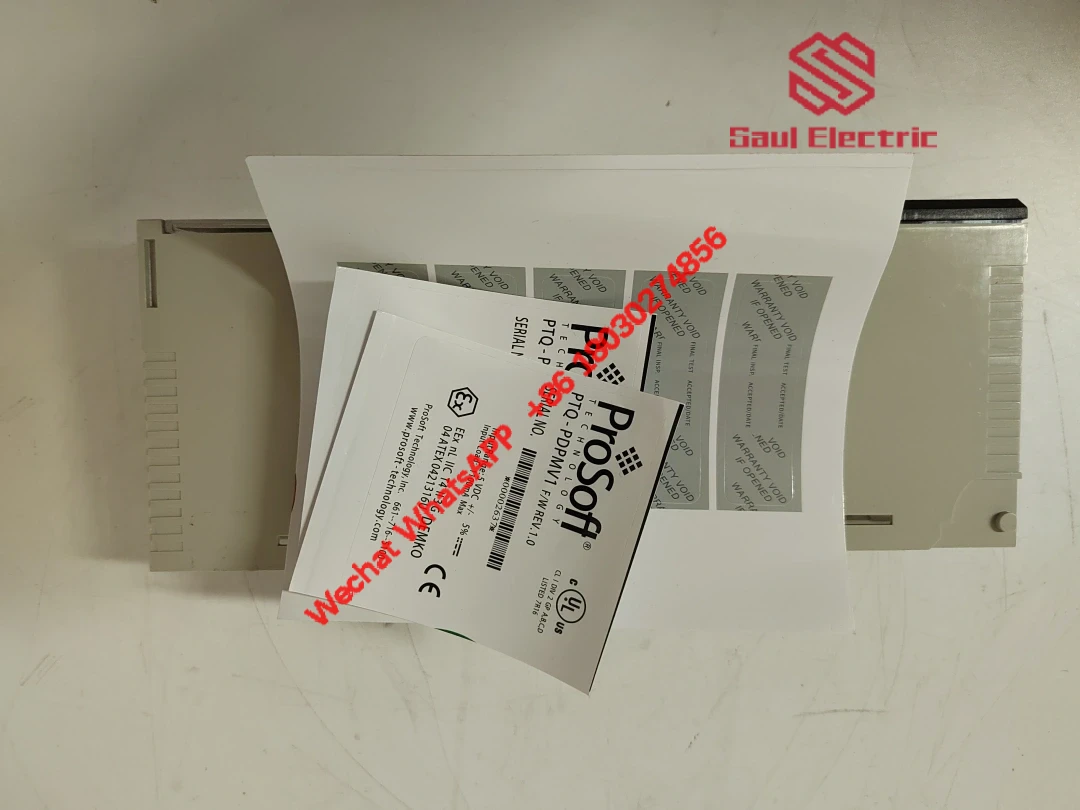

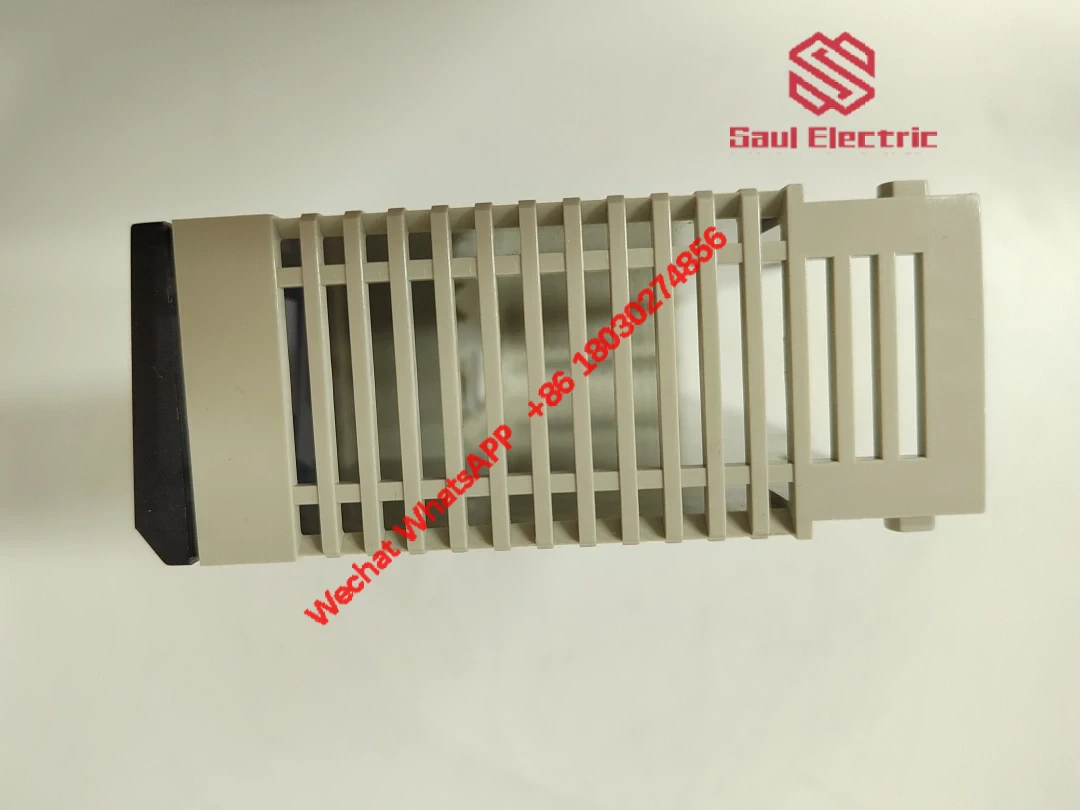

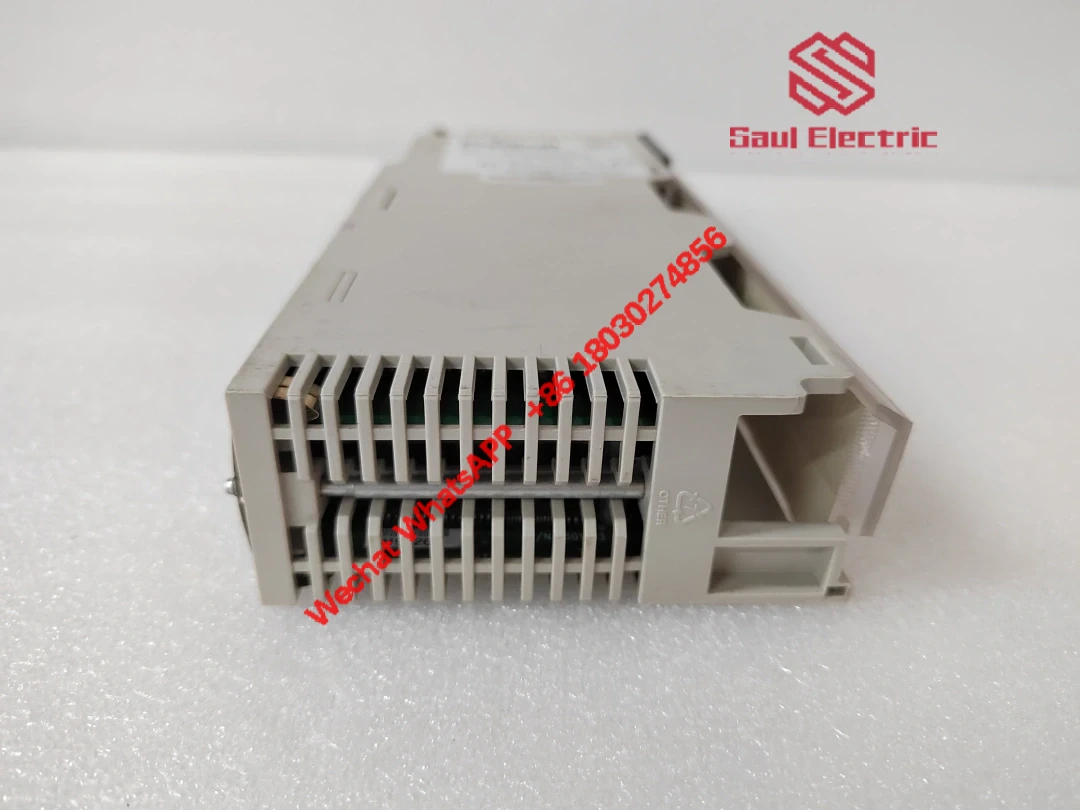

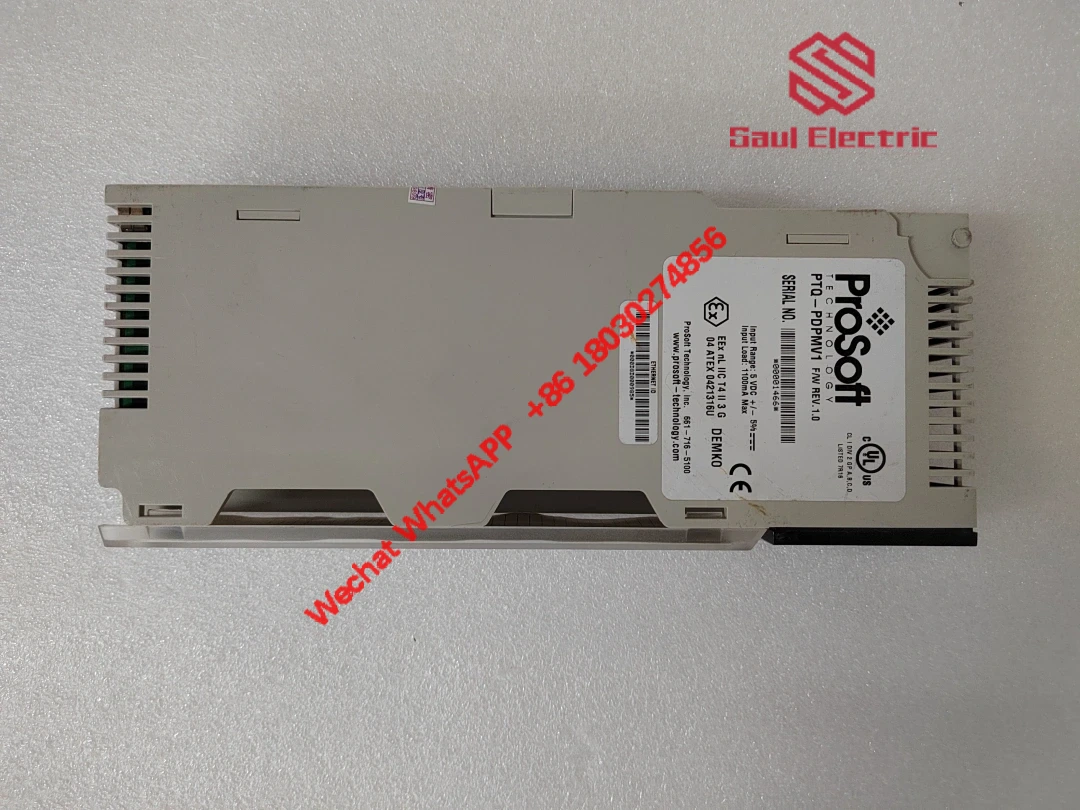

ProSoft PTQ-PDPMV1 PROFIBUS DP Master Communication Module

The ProSoft PTQ-PDPMV1 serves as a high-performance bridge between Quantum® PLC systems and PROFIBUS DP networks. Designed for industrial automation environments, this module excels at connecting PLCs with DPV0/V1-compliant devices, ensuring reliable data flow in critical control applications. Its robust architecture makes it particularly valuable in settings like manufacturing lines, energy management systems, and process control installations.

Engineers often deploy this module in complex industrial settings requiring seamless PLC-to-fieldbus communication. One automotive plant technician mentioned how it improved their assembly line’s synchronization with robotic arms through DPV1’s extended diagnostics. Companies frequently pair this module with Quantum® chassis in applications ranging from wastewater treatment plants to oil & gas facilities. The module’s compatibility with Concept, Unity Pro, and ProWORX environments makes it a popular choice for both legacy system upgrades and new automation builds.

What sets this module apart is its dual-protocol support and redundancy features. The hot-standby capability meets Unity HEC specifications, making it suitable for critical systems where downtime isn’t an option. Flash memory allows firmware updates without hardware changes – a lifesaver during protocol standard evolutions. Its asynchronous data transfer handles up to 125 kbps speeds while maintaining compatibility with FDT/DTM tools, simplifying device integration. The non-volatile configuration memory ensures settings survive power cycles, and the Ethernet configuration port streamlines network setup compared to older serial methods.
