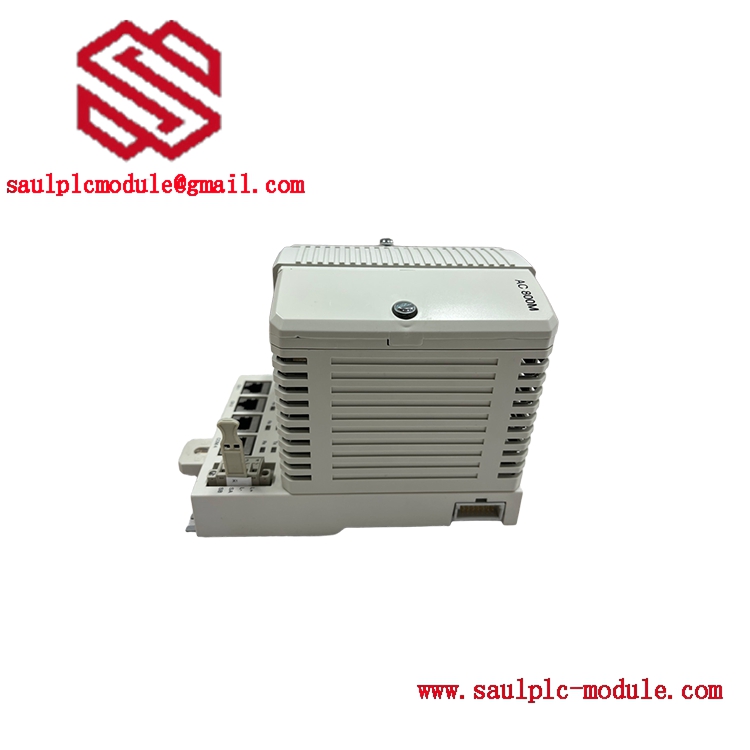

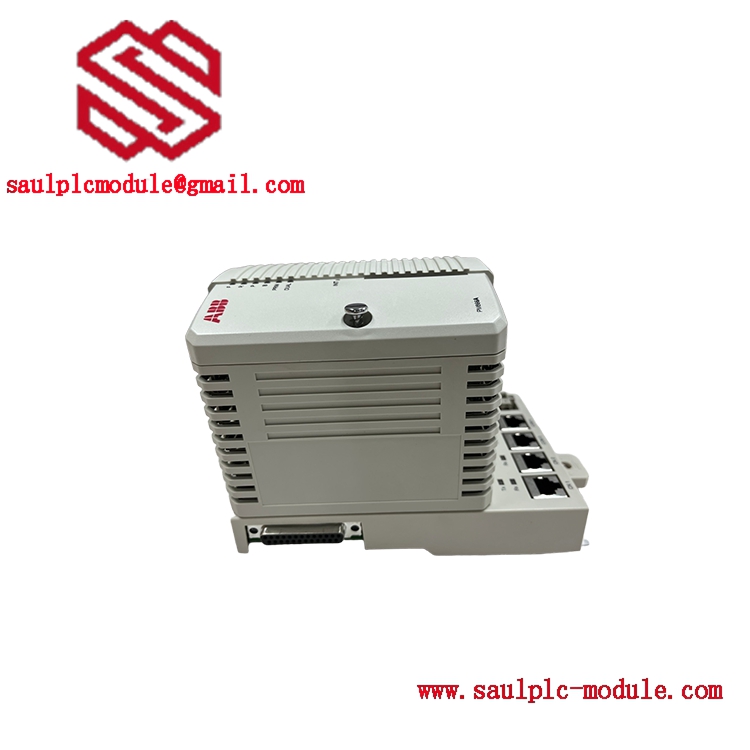

PM864AK01 3BSE01816R1 high-performance
Product Overview:
The PM864AK01 3BSE01816R1 is a high-performance, compact process controller belonging to the AC 800M series, engineered for reliable and deterministic control in complex industrial automation systems. It is designed to handle sophisticated regulatory control, sequence logic, and safety applications within a space-efficient footprint, making it a versatile core component for modern Distributed Control Systems (DCS) and large-scale PLC applications. Its architecture balances substantial processing power with robust connectivity, catering to the needs of both process and hybrid industries.
Key Features and Advantages:
Deterministic Control Performance:
The PM864AK01 3BSE01816R1 delivers predictable, real-time control through a powerful multi-tasking operating system. It executes complex control strategies, including PID loops, motor control sequences, and custom function blocks, with guaranteed scan times. This deterministic behavior is crucial for maintaining precise process variables, ensuring product quality, and enabling synchronized operations in production lines.
Integrated Connectivity and Scalability:
This controller features built-in, high-availability communication interfaces. Its integrated dual Ethernet ports with switch functionality support redundant network architectures (like PRP/HSR) natively, simplifying network design and enhancing reliability without external hardware. It seamlessly communicates with a wide range of I/O modules, field devices via various fieldbuses (through communication interfaces), and higher-level systems using standard protocols like OPC UA and MODBUS TCP/IP, ensuring easy integration and future expansion.
Robust and Secure Operation:
Built for 24/7 operation in demanding industrial environments, the PM864AK01 3BSE01816R1 withstands wide temperature ranges, vibration, and electrical noise. Security is integrated at multiple levels, featuring role-based access control, audit trails, and support for secure communication protocols to protect control logic and operational data from unauthorized changes or cyber threats, aligning with modern industrial security standards.
Unified Engineering and Diagnostics:
Configuration and programming are performed using the comprehensive Control Builder M engineering suite, which provides a single, integrated environment for hardware configuration, application development, and system documentation. The controller offers extensive diagnostic capabilities through detailed system status information, event logging, and waveform recording, enabling efficient commissioning, troubleshooting, and predictive maintenance.
Technical Specifications:
|
Feature
|
Specification
|
|---|---|
|
Product Model
|
PM864AK01 3BSE01816R1
|
|
Controller Type
|
High-Performance AC 800M Controller
|
|
Main Memory (Work)
|
512 MB
|
|
Non-Volatile Memory (for OS/Project)
|
512 MB
|
|
Communication Ports
|
2x Ethernet (with integrated switch), 1x Service Port (RS-232)
|
|
Supported Protocols
|
OPC UA, MODBUS TCP, IEC 61850, MMS
|
|
Redundancy Support
|
Yes (for controller, power, and network)
|
|
Operating Temperature
|
0°C to 60°C
|
Application Areas:
The PM864AK01 3BSE01816R1 is deployed in a broad spectrum of applications requiring reliable and advanced control. It is ideal for discrete control and safety functions in the oil & gas sector (e.g., wellhead control, fire & gas systems), batch and continuous process control in chemical and pharmaceutical plants, and complex automation in metals and mining. It also serves effectively in infrastructure management for water/wastewater treatment, power distribution automation, and as a powerful unit controller within larger plant-wide DCS architectures.
Related Products:
PM864A 3BSE018162R1:
A functionally equivalent high-performance controller. The PM864AK01 3BSE01816R1 and this model are part of the same performance tier, with differences typically in firmware version, manufacturing batch, or included software features, making them direct alternatives for most applications.
PM856AK01 3BSE066490R1:
An extended performance controller offering greater processing power and I/O capacity for the most demanding, large-scale process automation applications, representing a higher-tier option compared to the PM864AK01 3BSE01816R1.
CI871K01 3BSE056767R1:
A PROFIBUS DP communication interface module. When paired with the PM864AK01 3BSE01816R1, it extends the controller’s connectivity to a vast ecosystem of PROFIBUS DP field devices, such as sensors, actuators, and variable speed drives.
