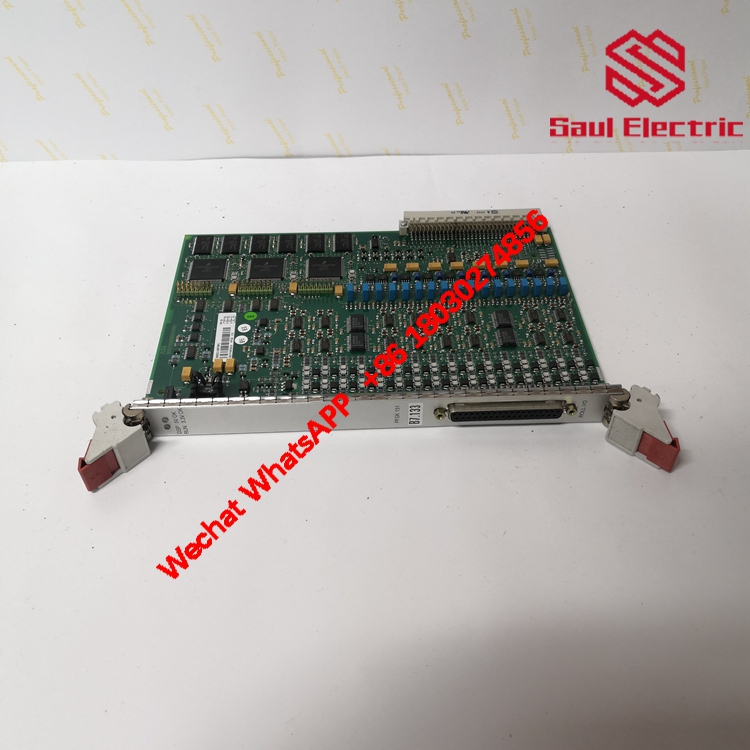

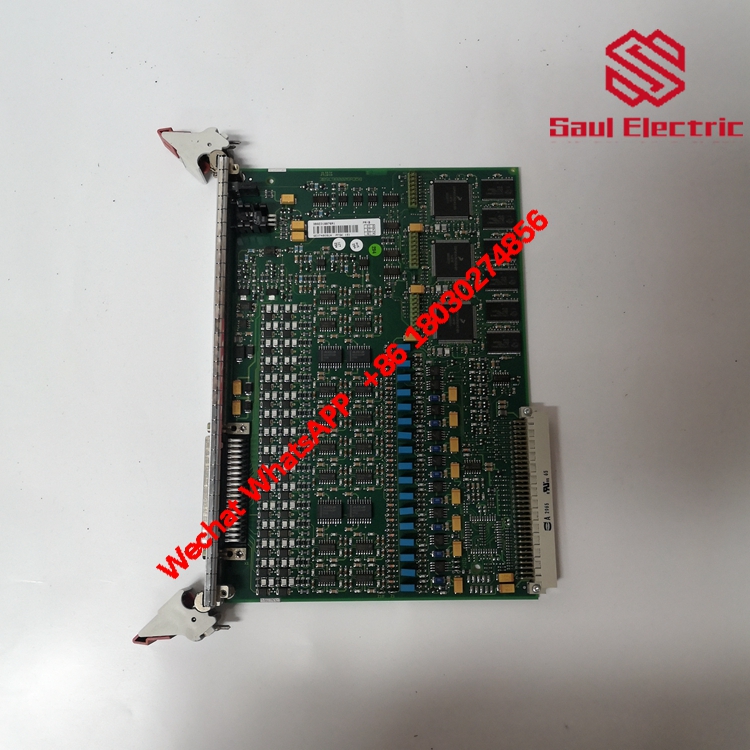

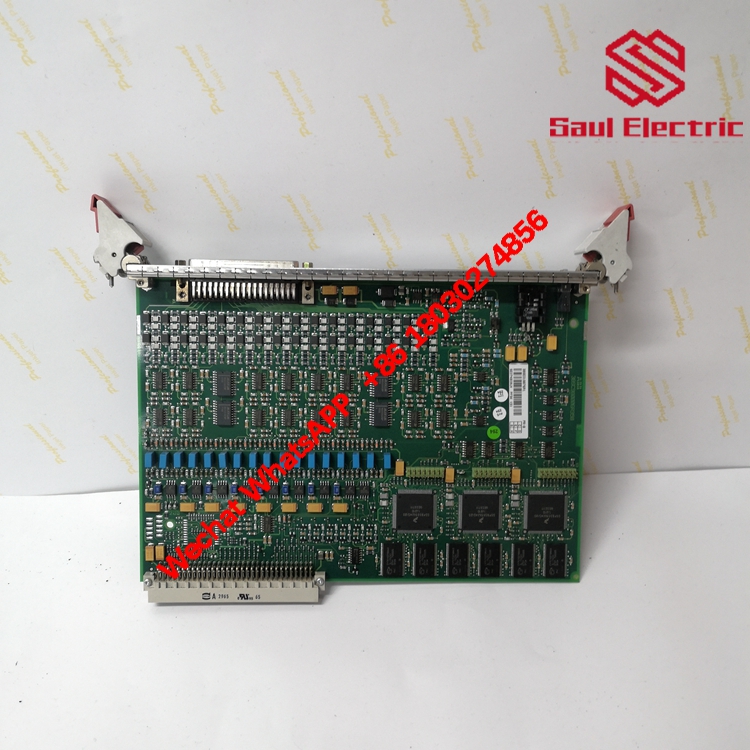

PFSK151 3BSE018876R1 Signal Concentrator Board
ABB PFSK151 3BSE018876R1 Professional Product Description
Product Overview
ABB PFSK151 3BSE018876R1 is a high‑reliability signal concentrator board engineered as a core interface component for ABB’s industrial automation and measurement systems, specifically designed to interface with DSP‑UP (PLD 1.0/1) controllers. As a compact signal aggregation and processing unit, ABB PFSK151 3BSE018876R1 integrates multi‑channel analog and digital signal acquisition, conditioning, and transmission capabilities, serving as a vital bridge between field sensors, actuators, and central control systems. Built with industrial‑grade components and robust signal isolation, ABB PFSK151 3BSE018876R1 ensures accurate, reliable data capture even in electrically noisy industrial environments, making it indispensable for precision measurement and control applications with moderate I/O requirements.
This module consolidates diverse field signals into a unified data stream, significantly reducing system wiring complexity and installation costs while enhancing overall system reliability. ABB PFSK151 3BSE018876R1 supports seamless integration with ABB’s Freelance DCS, Advant OCS, and Stressometer measurement platforms, providing a cost‑effective, scalable solution for signal management in process control, power generation, and manufacturing automation. With its compact design and comprehensive communication interfaces, ABB PFSK151 3BSE018876R1 optimizes signal distribution and system architecture, enabling efficient data exchange and real‑time process monitoring across industrial operations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PFSK151 (3BSE018876R1) |
| Manufacturer | ABB |
| Product Type | Signal Concentrator Board / DSP Signal Processing Module |
| Compatible Controller | DSP‑UP (PLD 1.0/1) |
| Analog Inputs | 4 channels (4‑20 mA / 0‑10 V / RTD / Thermocouple) |
| Analog Outputs | 4 channels (0‑10 V / 4‑20 mA) |
| Digital Inputs | 8 channels (24 VDC) |
| Digital Outputs | 8 channels (24 VDC) |
| Communication Interfaces | PROFIBUS‑DP, CAN Bus, RS‑232/485 |
| Power Supply | 24 VDC ±10% |
| Power Consumption | ≤5 W (typical) |
| Signal Resolution | 16‑bit ADC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection | Channel‑to‑channel isolation, EMC compliant, IP20 |
| Dimensions | 150 mm × 75 mm × 25 mm |
| Weight | Approx. 0.4 kg |
| Certifications | CE, UL |
Main Features and Advantages
ABB PFSK151 3BSE018876R1 delivers exceptional signal integration performance with its balanced I/O configuration, combining 4 analog inputs, 4 analog outputs, 8 digital inputs, and 8 digital outputs in an ultra‑compact form factor. This optimized channel design makes ABB PFSK151 3BSE018876R1 ideal for space‑constrained applications, reducing the number of interface modules required and lowering hardware costs while maximizing cabinet space utilization. The board’s 16‑bit high‑precision analog circuitry provides exceptional measurement accuracy, ensuring reliable capture of critical process parameters in demanding industrial environments.
Featuring comprehensive communication capabilities, ABB PFSK151 3BSE018876R1 supports PROFIBUS‑DP, CAN Bus, and dual serial ports (RS‑232/485), enabling seamless connectivity with a wide range of control systems and field devices. This multi‑protocol support ensures compatibility with both ABB’s proprietary platforms and third‑party automation systems, enhancing system flexibility and interoperability. The module’s robust signal isolation and EMC compliance protect against electrical interference, guaranteeing stable signal transmission and data integrity in harsh industrial settings.
ABB PFSK151 3BSE018876R1 incorporates advanced signal conditioning and preprocessing capabilities, performing filtering, amplification, and linearization directly on the board to reduce processing load on the main controller. Its modular, plug‑and‑play design allows for easy installation, hot‑swapping, and system expansion, minimizing downtime during maintenance or upgrades. The board also features comprehensive diagnostic functions, enabling real‑time monitoring of channel status, signal quality, and communication health, which supports proactive maintenance and reduces unplanned outages.
Furthermore, ABB PFSK151 3BSE018876R1 offers exceptional reliability through its industrial‑grade construction and rigorous quality testing, ensuring continuous operation in extreme temperature and vibration conditions. Its compatibility with ABB’s Control Builder software simplifies configuration, programming, and system integration, providing engineers with a user‑friendly toolset for efficient deployment and optimization.
Application Areas
ABB PFSK151 3BSE018876R1 is extensively deployed in process industries, serving as the primary signal interface for chemical, pharmaceutical, and food processing plants with moderate I/O requirements. It concentrates and processes signals from pressure, temperature, flow, and level sensors, providing accurate, real‑time data to DCS systems for precise process control and regulatory compliance. In power generation facilities, ABB PFSK151 3BSE018876R1 manages signals from turbine monitoring systems, generator excitation controls, and substation equipment, ensuring stable operation and grid integration.
Within manufacturing automation, ABB PFSK151 3BSE018876R1 integrates signals from production line sensors, limit switches, and actuators, enabling coordinated control of assembly machinery, material handling systems, and packaging equipment. Its compact design and balanced I/O make it ideal for automotive, aerospace, and electronics manufacturing facilities where space is limited and signal management complexity is moderate. The module also plays a crucial role in metalworking and steel production, processing signals from rolling mills, forging presses, and quality control sensors.
In building automation and infrastructure management, ABB PFSK151 3BSE018876R1 connects HVAC systems, lighting controls, security sensors, and energy management devices, facilitating centralized monitoring and control of commercial and industrial facilities. It is also widely used in water and wastewater treatment plants, managing signals from pumps, valves, and water quality sensors to ensure efficient operation and compliance with environmental standards.
Additionally, ABB PFSK151 3BSE018876R1 finds application in marine and offshore environments, where its rugged design and wide temperature tolerance enable reliable signal processing for shipboard automation, propulsion control, and offshore drilling operations. Its versatility and reliability make it a preferred choice for mission‑critical applications across all major industrial sectors requiring robust, compact signal concentration and management.
Related Products
- PFSK152 3BSE018877R1: A higher‑channel variant of PFSK151 3BSE018876R1 with 8 analog I/O and 16 digital I/O channels, suitable for larger signal concentration applications.
- PFSK153 3BSE018878R1: An enhanced version of PFSK151 3BSE018876R1 with additional Ethernet connectivity and expanded memory for more complex signal processing tasks.
- PFSK162 3BSE020889R1: A high‑density signal concentrator board offering 16 analog I/O channels as an upgrade option for systems using PFSK151 3BSE018876R1.
- DSP‑UP (PLD 1.0/1): The primary controller unit that PFSK151 3BSE018876R1 is designed to interface with, forming the core of ABB’s measurement and control systems.
- CI540: PROFIBUS‑DP communication module that extends PFSK151 3BSE018876R1’s networking capabilities and supports redundant communication paths.
- AI561: High‑accuracy analog input module compatible with PFSK151 3BSE018876R1, providing additional precision measurement channels for critical process variables.
- DO562: Relay output module that pairs with PFSK151 3BSE018876R1, offering galvanically isolated digital outputs for controlling high‑power field devices.
- DI562: Isolated digital input module for PFSK151 3BSE018876R1, enhancing noise immunity and signal reliability in electrically harsh environments.
- ABB Control Builder: Comprehensive software suite for configuring, programming, and diagnosing PFSK151 3BSE018876R1 and associated system components.
- Freelance DCS Base Unit: Standard mounting chassis for PFSK151 3BSE018876R1, providing power distribution and backplane connectivity for multi‑module systems.
Installation and Maintenance
Installation Preparation: Before installing PFSK151 3BSE018876R1, ensure the control cabinet is properly grounded and all power sources are disconnected. Verify compatibility with the target DSP‑UP controller or Freelance DCS base unit and inspect PFSK151 3BSE018876R1 for physical damage. Align the module with the backplane slots, securing it firmly to prevent vibration‑related issues. Connect field wiring to the appropriate terminal blocks, observing proper channel labeling and ensuring adequate shielding for analog signals to minimize interference. Confirm the 24 VDC power supply is stable and within the specified voltage range before powering on the system.
Maintenance Suggestions: For optimal performance of PFSK151 3BSE018876R1, perform regular visual inspections to check for loose connections, dust accumulation, and cable integrity. Monitor system diagnostics via the ABB Control Builder interface to detect early fault indicators and channel performance deviations. Keep the operating environment within the specified temperature range and ensure adequate ventilation to prevent thermal stress on PFSK151 3BSE018876R1. Clean the module and surrounding area periodically using compressed air, avoiding direct contact with sensitive electronic components. When replacing PFSK151 3BSE018876R1, ensure the replacement unit has the same firmware version as the existing system to maintain compatibility. Always back up system configurations and channel settings before performing any maintenance or upgrades.
Product Guarantee
Hong Kong Saul Electric Co., Ltd. provides a comprehensive 1‑year warranty for PFSK151 3BSE018876R1, covering all manufacturing defects and ensuring reliable performance from delivery. As a leading industrial automation distributor since 2007, we specialize in sourcing hard‑to‑find and discontinued PLC, DCS, and interface components, maintaining extensive in‑stock inventory to meet urgent replacement needs. Our PFSK151 3BSE018876R1 units undergo rigorous testing to meet ABB’s original specifications, guaranteeing full compatibility and operational integrity in critical signal concentration applications. We offer dedicated technical support for installation, configuration, and troubleshooting, ensuring seamless integration of PFSK151 3BSE018876R1 into your control systems. For inquiries about PFSK151 3BSE018876R1 or other industrial control products, contact us via WhatsApp at +8618030274856 or email at saulplcmodule@gmail.com. Hong Kong Saul Electric Co., Ltd. is your trusted partner for all industrial automation component needs.
