Name: ABB PPD539A102 3BHE039770R0102: High - performance Process Control Module PP D539 A102
SKU: 969
Availability: InStock

Description

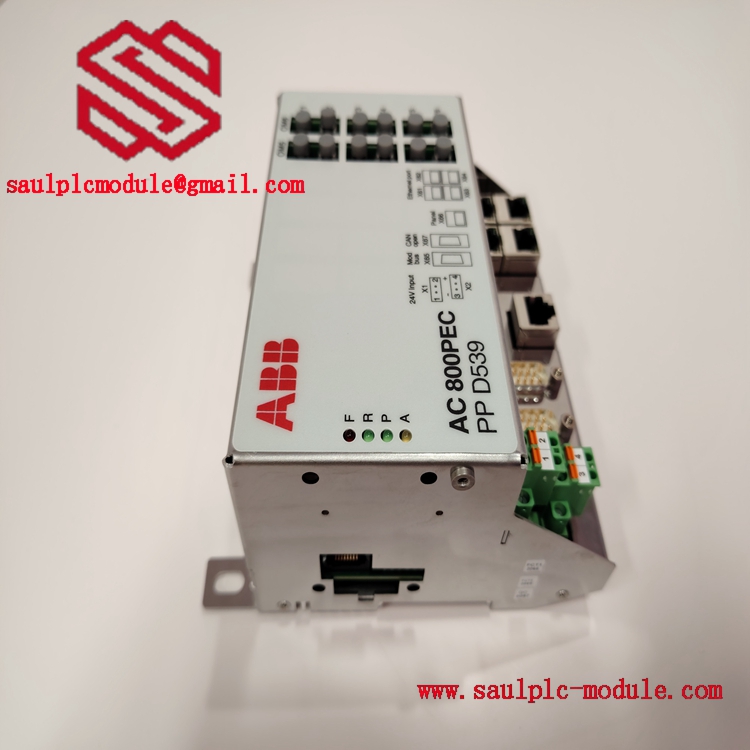

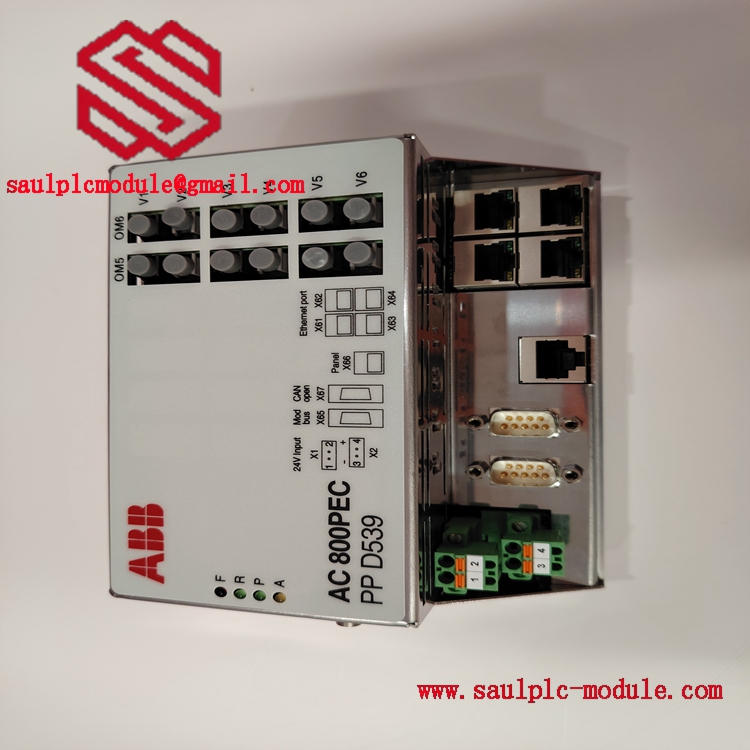

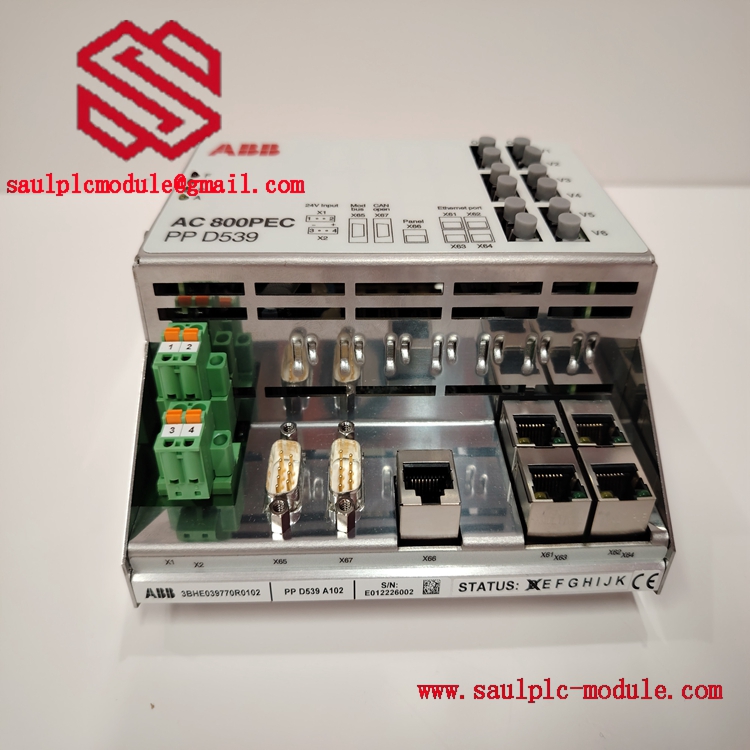

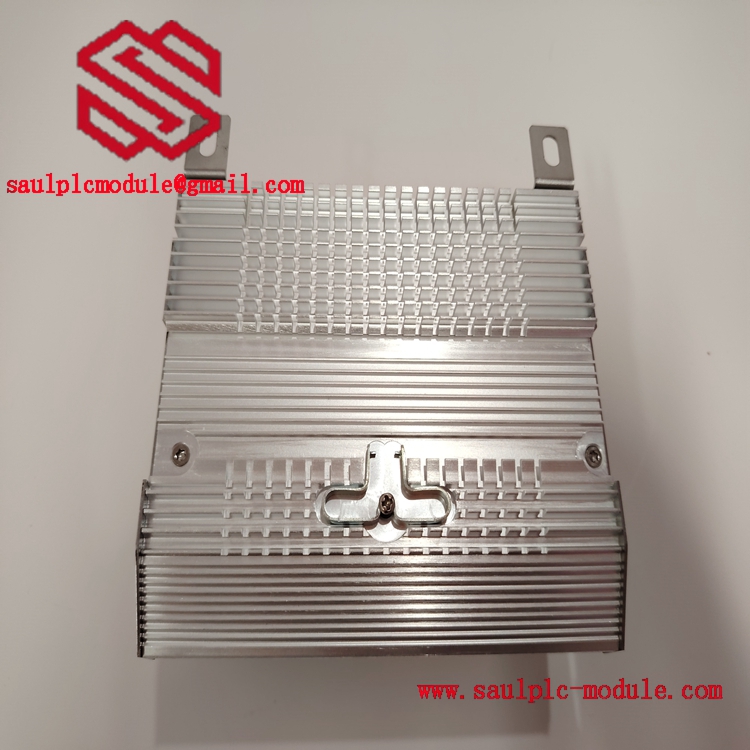

ABB PPD539A102 3BHE039770R0102: High – performance Process Control Module PP D539 A102

Product Overview

The PPD539A102 3BHE039770R0102 is a high – performance controller module under ABB’s AC800M control system6. It is designed specifically for process control applications, playing a crucial role in industrial automation. This module is capable of precisely controlling production processes, such as temperature, pressure, and flow rate, and can also collect, analyze, and process on – site instrument data.

As a key component, it features high – reliability, high – precision, and flexible configuration capabilities. With a robust design, it can stably operate in various harsh industrial environments. The PPD539A102 3BHE039770R0102 also realizes safety interlocks and fault diagnosis functions, ensuring the safety of the production process. It is an essential module for ensuring the efficient and safe operation of industrial production systems.

Technical Specifications2

Parameter Name	Parameter Value
Product Model	PPD539A102 3BHE039770R0102
Manufacturer	ABB
Product Type	Controller Module
Safety Level	SIL 3, Cat. 4/PL e
Input Type	Digital, HTL – type
Input Quantity	10 (dual – channel, up to SIL 3); 20 (single – channel, up to SIL 2)
Input Voltage Range (“0” Signal)	0 V DC – 5 V DC
Output Quantity	4 (safety semiconductor output, up to Cat. 4); 2 (negative – switching output)
Rated Output Voltage	24 V DC
Rated Control Circuit Power Voltage	18 V DC – 30 V DC
Response Time	Maximum 30 ms
Recovery Time	< 10 s
Operating Temperature	-20 °C – 55 °C
Storage/Transport Temperature	-20 °C – 70 °C

Main Features and Advantages

High Safety Level: The PPD539A102 3BHE039770R0102 meets the SIL 3, Cat. 4/PL e safety level, which can effectively ensure the safety of industrial production processes. It is suitable for applications with high – safety requirements, such as power plants and petrochemical plants.
Precise Control: With high – precision control capabilities, it can accurately regulate process parameters such as temperature, pressure, and flow rate, ensuring the stability and quality of production. This is of great significance for improving production efficiency and product quality.
Flexible Configuration: This module has a flexible configuration function, which can be freely configured according to different production process requirements. It has 20 safety inputs and 4 safety outputs, as well as other signal outputs, which can meet the complex control needs of different industrial scenarios.
Strong Environmental Adaptability: It can operate normally in the temperature range of -20 °C to 55 °C, and has good adaptability to humidity and altitude. The impact resistance of 10g also enables it to maintain stable performance in harsh industrial environments.

Application Areas

Power Industry: It is widely used in power plants and substations, responsible for the control and monitoring of turbines, boilers, and other equipment, ensuring the stable operation of the power generation system and the stability of power output.
Petrochemical Industry: In refineries and chemical plants, the PPD539A102 3BHE039770R0102 is used to control various chemical production processes, monitor process parameters in real – time, and ensure the safe and efficient operation of petrochemical production.
Metallurgical Industry: Applied in steel plants, it can realize the precise control of the steel – making process, improve the quality of steel products, and optimize the production process, helping the metallurgical industry to improve production efficiency and reduce costs.
Other Industries: It is also applicable to industries such as paper – making and food processing. In paper – making plants, it controls the pulp preparation and paper – making processes; in food processing plants, it is responsible for the control of process parameters such as temperature and pressure during food production to ensure food quality and safety.

Related Products

ABB PPD517A: It is also a controller module of ABB, which may have different control precisions and application scenarios from PPD539A102 3BHE039770R0102. It is mainly used for some basic control tasks, while PPD539A102 3BHE039770R0102 is more focused on high – performance process control.
ABB AC800M – CPU: As the central processing unit of the AC800M system, it works in conjunction with PPD539A102 3BHE039770R0102, providing overall control and coordination for the system, and jointly completing complex industrial control tasks.
ABB AI810 Analog Input Module: This module can be used in combination with PPD539A102 3BHE039770R0102 to collect analog – quantity signals in the production process, such as temperature and pressure signals, and transmit them to the controller module for processing.
ABB DI810 Digital Input Module: It is used to collect digital – quantity signals in the field, and cooperate with PPD539A102 3BHE039770R0102 to realize the monitoring and control of the production process, such as the status monitoring of switches and valves.
ABB AO810 Analog Output Module: It can receive control signals from PPD539A102 3BHE039770R0102 and convert them into analog – quantity output, so as to control field – devices such as flow control valves and temperature – control heaters.

Installation and Maintenance

Installation Preparation: Before installing the PPD539A102 3BHE039770R0102, ensure that the installation environment meets the temperature and humidity requirements, and keep the installation site clean and free from strong electromagnetic interference. Check whether the power supply voltage is within the rated range of 18 V DC – 30 V DC. When installing, use the TBUS DIN rail for installation, and ensure that the connection is firm to prevent loosening caused by vibration.
Maintenance Suggestions: Regularly check the operating status of the PPD539A102 3BHE039770R0102, and pay attention to whether there are abnormal indicator lights. Clean the module regularly to prevent dust from affecting heat dissipation and normal operation. Periodically calibrate the input and output signals of the module to ensure the accuracy of control. In case of a fault, refer to the product manual for troubleshooting, and replace the damaged components in time according to the requirements of the manual.

Product Warranty

Hong Kong Saul Electric Co., Ltd. has been a leading enterprise in the industrial control industry since 2007. We are proud to provide a 1 – year product warranty for the PPD539A102 3BHE039770R0102. As an import – export trading and distribution company, we have a large – scale inventory of industrial control spare parts, including many hard – to – find and discontinued models. Our strong supply – channel advantages and sufficient stock can quickly meet customers’ urgent needs for spare parts. If any quality problems occur with the PPD539A102 3BHE039770R0102 during the warranty period, our professional after – sales service team will provide timely technical support and solutions to ensure your satisfaction.
