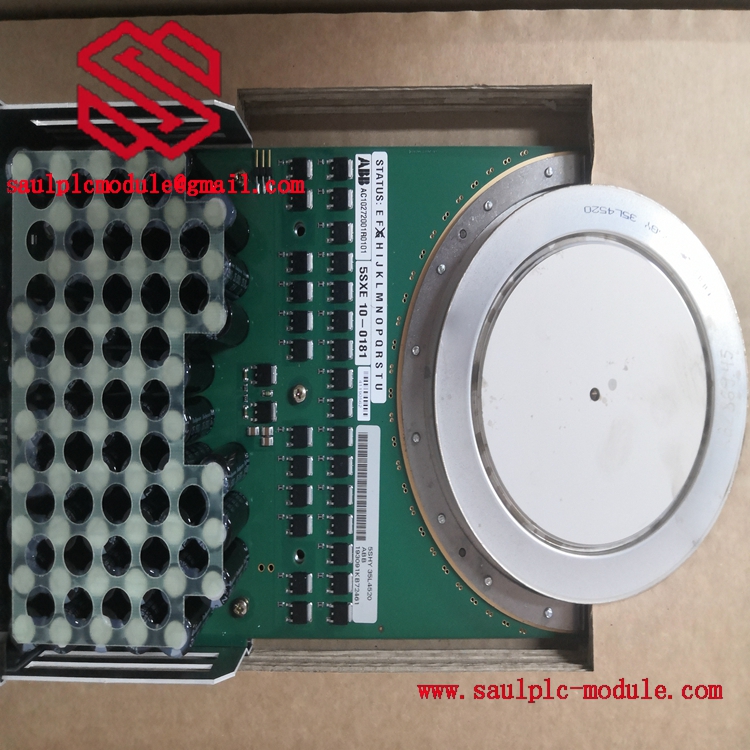

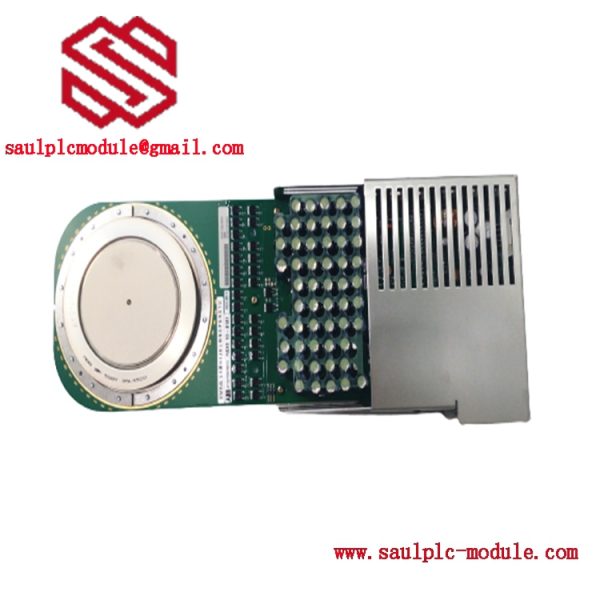

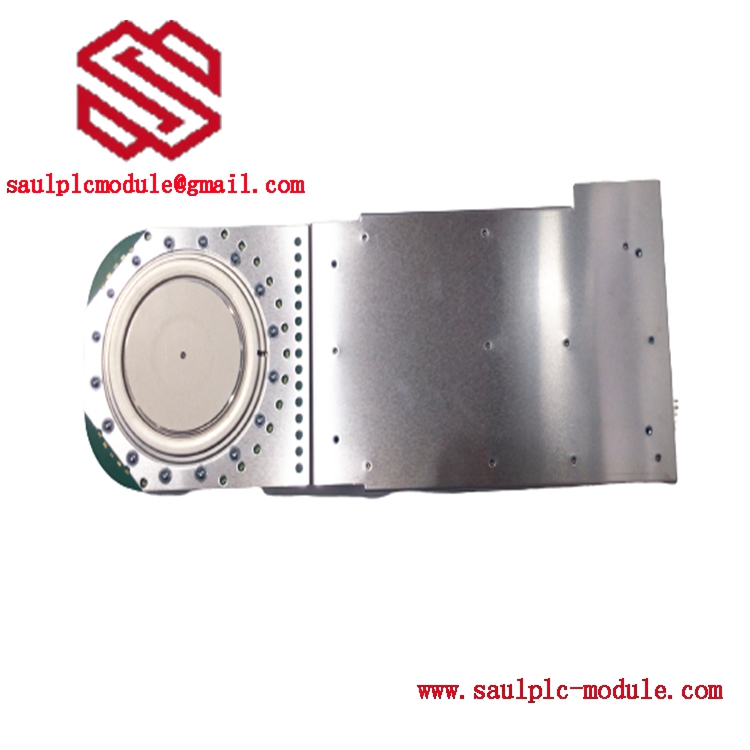

ABB Power Electronics Ecosystem: 5SHY35L4520, AC10272001R0101 & 5SXE10-0181 Product Description
Product Overview
The ABB 5SHY35L4520, ABB AC10272001R0101, and ABB 5SXE10-0181 form an integrated power management solution within ABB’s industrial portfolio, engineered to deliver precision and efficiency in medium-to-high power automation systems. The ABB 5SHY35L4520 is a high-performance IGBT module from the 5SHY series, celebrated for its robust power handling and low switching losses, making it ideal for energy-intensive applications.
Complementing it, the ABB AC10272001R0101 serves as a specialized gate driver board, designed to optimize IGBT performance by delivering precise control signals. Rounding out the trio, the ABB 5SXE10-0181 is a compact IGBT module from the 5SXE series, balancing power density and thermal efficiency. Together, these components create a synergistic system: the ABB 5SHY35L4520 and ABB 5SXE10-0181 handle power conversion, while the ABB AC10272001R0101 ensures their optimal operation, enhancing stability and extending lifespans in critical industrial setups.
Technical Specifications
| Parameter Name | Parameter Value for 5SHY35L4520 | Parameter Value for AC10272001R0101 | Parameter Value for 5SXE10-0181 |
|---|---|---|---|
| Product Model | 5SHY35L4520 | AC10272001R0101 | 5SXE10-0181 |
| Manufacturer | ABB | ABB | ABB |
| Product Type | Medium-Power IGBT Module | IGBT Gate Driver Board | Compact IGBT Module |
| Rated Voltage | 1700V | 24V DC (Control Voltage) | 1200V |
| Rated Current | 350A (Collector Current) | 10A (Max Output Current) | 180A (Collector Current) |
| Operating Temperature | -40°C to +125°C | -25°C to +70°C | -40°C to +125°C |
| Dimensions | 145mm x 105mm x 30mm | 120mm x 85mm x 25mm | 110mm x 80mm x 22mm |
| Mounting Type | Heat Sink Mount (M6 Screws) | PCB Mount with Connector Pins | Heat Sink Mount (M4 Screws) |
| Protection Features | Overcurrent, Overtemperature, Short Circuit | Overvoltage Clamp, ESD Protection | Overcurrent, Undervoltage, Thermal Shutdown |
| Compliance | IEC 60747-12, RoHS 2 | IEC 61010-1, CE Certified | IEC 60747-12, RoHS 2 |
Main Features and Advantages
High efficiency: The ABB 5SHY35L4520 incorporates advanced IGBT chip technology that reduces switching losses by up to 15% compared to standard modules, significantly improving energy efficiency in continuous high-load operations such as industrial drives and renewable energy inverters. Its ceramic substrate enhances thermal conductivity, ensuring stable performance even at maximum load.
Precise control: The ABB AC10272001R0101 gate driver board delivers ultra-fast signal processing (response time <1µs) to optimize the switching behavior of IGBT modules like the 5SHY35L4520. It features adaptive voltage control to prevent module stress during transients and built-in diagnostics for predictive maintenance, minimizing downtime.
Compact power: The ABB 5SXE10-0181 offers exceptional power density in a space-saving design, making it ideal for tight installations in mobile equipment or auxiliary power systems. Its low parasitic inductance reduces voltage spikes, while its broad temperature range ensures reliability in harsh environments. Together, these components provide a flexible, efficient solution for diverse power needs.
Application Fields
The ABB 5SHY35L4520, ABB AC10272001R0101, and ABB 5SXE10-0181 excel across industries requiring precise power control:
In renewable energy systems, the 5SHY35L4520 converts DC from solar panels or wind turbines to grid-compliant AC, while the AC10272001R0101 stabilizes switching to maintain grid standards. The 5SXE10-0181 supports battery storage chargers, optimizing energy flow.
In industrial drives, these components power motor control systems for conveyors, pumps, and compressors. The 5SHY35L4520 adjusts motor speed efficiently, the AC10272001R0101 ensures smooth transitions, and the 5SXE10-0181 handles auxiliary motor loads, collectively reducing energy consumption by up to 20%.
They also find use in automation equipment, where their combined reliability ensures uninterrupted operation in packaging machines, metal processing lines, and material handling systems.
Related Products
- 5SHY3545L0005: A 1200V variant of the 5SHY35L4520 for medium-voltage applications.
- AC10272001R0201: An upgraded gate driver with enhanced IoT connectivity, compatible with the AC10272001R0101.
- 5SXE10-0200: A higher-current (200A) version of the 5SXE10-0181 for increased power demands.
- 3BHB004692R0001: A complementary control board for multi-module systems using the 5SHY35L4520.
- 5SHY4045L0006: A 400A IGBT module, ideal for parallel configurations with the 5SHY35L4520.
- AC800PEC: ABB’s power electronics controller, designed to integrate with the AC10272001R0101.
- 5SXE06-0120: A lower-power (120A) compact module, suitable for lighter loads than the 5SXE10-0181.
Installation and Maintenance
Installation preparation: Before installing the ABB 5SHY35L4520, ensure the heat sink has thermal resistance ≤0.15°C/W and apply thermal grease for optimal heat transfer. For the ABB AC10272001R0101, verify PCB mounting alignment and confirm control voltage compatibility (24V DC). For the ABB 5SXE10-0181, check that the heat sink is clean and properly sized for its current rating.
Maintenance recommendations: Inspect the 5SHY35L4520 quarterly for thermal stress signs (e.g., discolored terminals) and clean heat sink fins. For the AC10272001R0101, test signal integrity annually using ABB diagnostic tools. The 5SXE10-0181 requires bi-annual checks for loose connections or corrosion, especially in humid environments. All components benefit from firmware updates (where applicable) to maintain performance.
Product Assurance
Hong Kong Saul Electric Co., Ltd. guarantees the quality of the ABB 5SHY35L4520, ABB AC10272001R0101, and ABB 5SXE10-0181 with a 1-year warranty covering manufacturing defects. Leveraging 17 years of expertise, we maintain extensive ready stock to meet urgent needs, including hard-to-find models. Our supply chain 优势 ensures prompt delivery, while our technical team provides professional support for installation and troubleshooting.
For inquiries, contact us via WhatsApp or email. Hong Kong Saul Electric Co., Ltd. is your trusted partner for reliable industrial control solutions, committed to quality and customer satisfaction.
